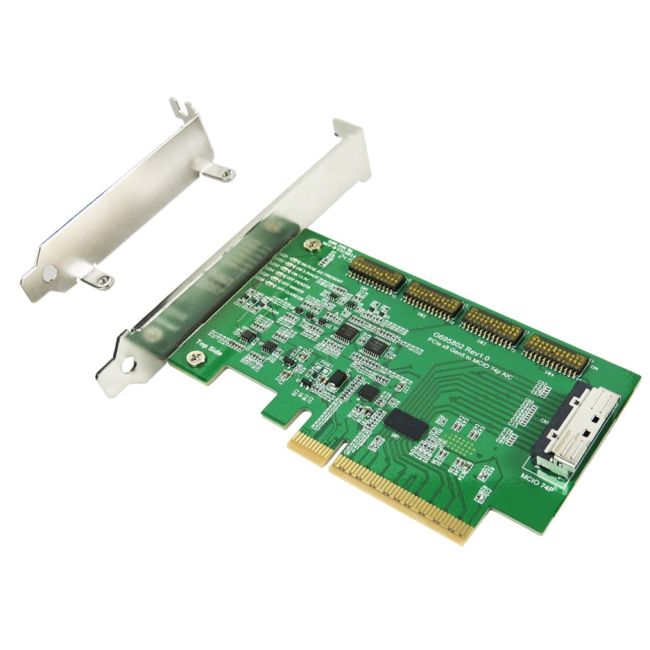

PCIe x8 with GEN5 with ReDriver to MICO 74P AIC PCIE 5.0

Description :

• MCIO 74P to PCIe x8 Gen4 convert

• Built-in MCIO 74P connector with 30u”(0.38um) min Au mating area plating

• Input PCIe CEM power +3.3V with Load Switch protection for ReDriver controller, SMBus switch and SMBus expander ※ Input PCIe CEM power 3.3Vaux with Load Switch protection for Bus Buffer IC.

• Built-in ReDriver controller to extend PCIe 5.0, 32GT/s 8 lanes signals and may provides programmable linear equalization, flat gain.

• CTLE boosts up to 22 dB at 16 GHz

• The PCIe 8 lanes can be bifurcated into two x4 link width to support different system topologies

• Built-in PCIe 100MHz clock buffer(Address: 0x6C) for MCIO 74P to drive PCB more trace reach and longer cable length.

• Built-in SMBus Switch(Address: 0x70) with Reset funtion for MCIO 74P dual port SMBus communication

• Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote MCIO 74P dual port Reset signals

• Built-in PERST# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

• Supports PCIe PERST# for OOB(out of band) management to remote MCIO 74P dual port Reset signals.

• Built-in WAKE# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

• Built-in CLKREQ# Bus Buffer Gate to be used in PCB more trace reach and longer cable length.

Specifications :

• PCI Express Base Specification Rev 5.0

• PCIe_CEM_R5.1_V1.0_08072023_NCB

• SFF-TA-1016 Rev 1.2

Operating Systems :

• Rack server

• Micro server and Tower server

• High performance computing

• Hardware accelerator ※ Storage Controller HBA(Host Bus Adapter) ※ Desktop PC/motherboard
