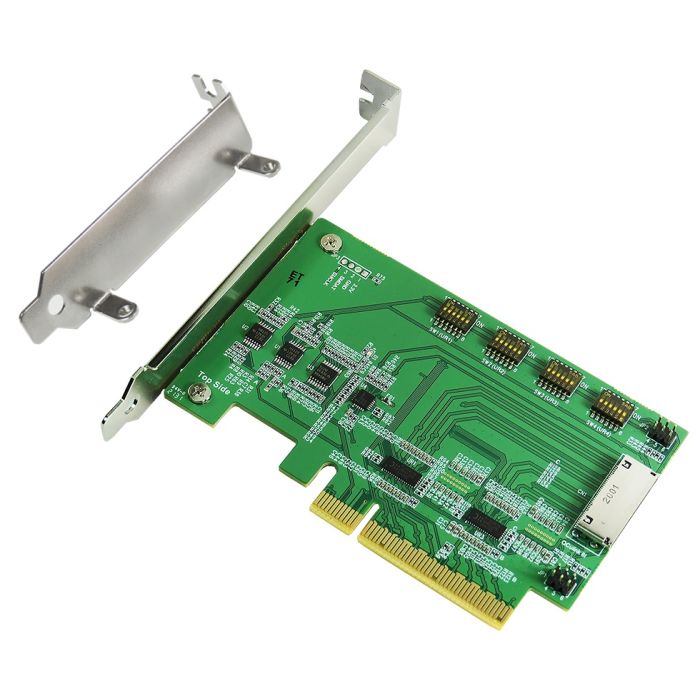

PCIe x8 with Re-Driver to Oculink 8i Add-in-Card PCIe Gen 4

PCIe x8 with Re-Driver to Oculink 8i Add-in-Card PCIe Gen 4

Features :

• OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert

• Built-in OCulink 8i (SFF-8612) connector, pin-out defined by SFF-9402 Rev1.1

• Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.

• Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.

• Built-in PCIe SMBus Switch(Address 0xE2) 4-channel with Reset Function for OCulink 8i (SFF-8612) SMBus and PCIe 100MHz Clock buffer SMBus control

• Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.

• Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable length.

• Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.

• Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable

• D1 Green LED on indicates AIC ready

Specifications :

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with Support SFF-9402 Rev1.1

• Compliant with PCI_Express_OCuLink_1.0a

Operating Sysytem Support :

• Windows 8 &8.1

• Windows 10

• UEFI 2.3.1 or later

This unit can be used with Micro SATA Cables Part #SLM-1957-8I

PCIe Gen 4 SlimSAS (SFF-8654) 8i to OCulink (SFF-8611) 8i Cable

This unit can be used with Micro SATA Cables Part #SLM-1869-U3

SlimSAS 8i(SFF-8654) PCIe 4.0 to U.3 Dual port with +12V Hot Swap Power Controller for PCIe x8, x16 Add-in Card

Micro SATA Cables PN # OCU-1884-8I
