PCIE X8 TO MINI SAS HD X2 ADAPTER

$42.75
Availability: In stock
Only 18 left
Part #
MS-1610-X8

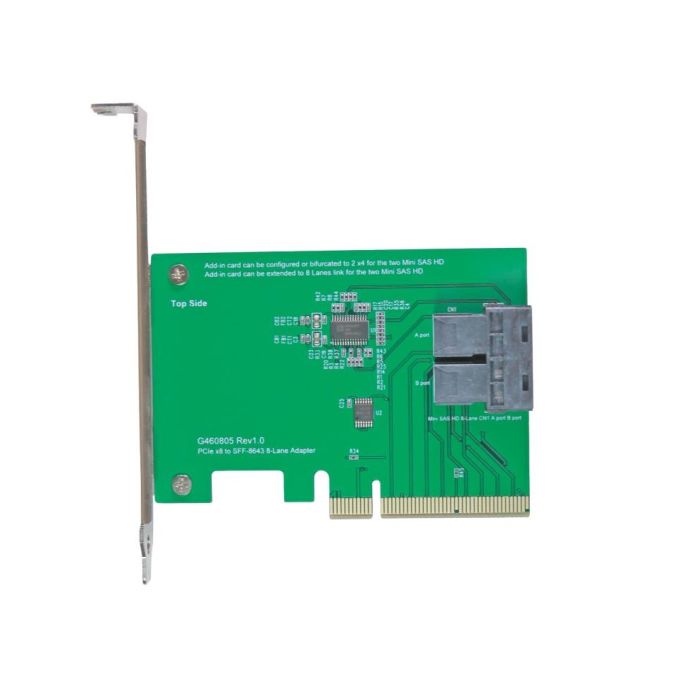

‌PCIE X8 TO MINI SAS HD X2 ADAPTER

The adapter consists of two Mini SAS HD connectors, which support data transfer rates of up to 12 Gb/s per channel.

PCIE X8 TO MINI SAS HD X2 Adapter supports SFF-9402 clock pin out and provides better performance. The unit is highly feasible with NVM Express 1.2a and backs SSD Form Factor Version 1a. The applications where this adapter can be compatible are Data Center, Routers, Storage Controller, and Servers. Moreover, it supports multiple OS without any additional driver installation.

The adapter consists of two Mini SAS HD connectors, which support data transfer rates of up to 12 Gb/s per channel. This makes the adapter ideal for high-performance applications such as data backup, database management, and multimedia content creation, where fast and reliable data transfer is critical.

The PCIE X8 interface on the adapter is designed to plug into a PCIe X8 slot on the motherboard of the server or workstation. The PCIe X8 interface provides high-speed connectivity between the adapter and the motherboard, allowing for fast data transfers and low-latency communication.

The adapter is constructed using high-quality materials and is designed with shielding to protect against interference and ensure reliable data transfer. The adapter is also designed to be compact and easy to install, making it an ideal solution for systems where space is at a premium.


Micro SATA Cables Part# MS-1610-X8


More Information
Part # MS-1610-X8
Bar Code (UPC) 646791003945
Specifications

‌PCIE X8 TO MINI SAS HD X2 ADAPTER

Features :

  • Can be offered in two x4(need CPU and BIOS both support) and x8 configurations
  • Features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity.
  • Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe
  • Dual-port PCIe Gen 3 NVMe controller
  • Four internal lanes per Mini SAS HD port, 3.2B/s per port
  • Supports two physical NVMEe devices
  • Supports SFF-9402 clock pin out
  • Support Intel Define Mini SAS HD SFF-8643 clock pin out
  • Supports SFF-9402 perst# pin out
  • Supports Intel Define Mini SAS HD SFF-8643 perst# pin out
  • Enables the system perst# signal to be used over longer trace lengths and over a cable
Specifications:
  • Compliant with NVM Express 1.2a
  • Support PCI Express Base Specifications Rev. 3.0
  • Support SSD Form Factor Version 1a
  • Compliant with SFF-8643 Specification Version 3.5
OS Support:
Vmware
  • Linux
  • Win 8 - 8.1
  • Win 10
  • UEFI 2.3.1 or Later
Applications:
  • Servers
  • Data Center
  • Routers
  • Storage Controller
  • Storage Rack
  • Server RAIDs
  • Switches
Micro SATA Cables PN # MS-1610-X8


Unit can be used with Micro SATA Cables PN # MIC72-9801

Mini SAS HD 8-Lane to Slimline SAS 8-Lane Cable

Unit can be used with Micro SATA Cables PN # SAS-1579-M2

‌Slimline SAS 8i to M.2/M.3 (NF1) NVMe SSD Dual Port
