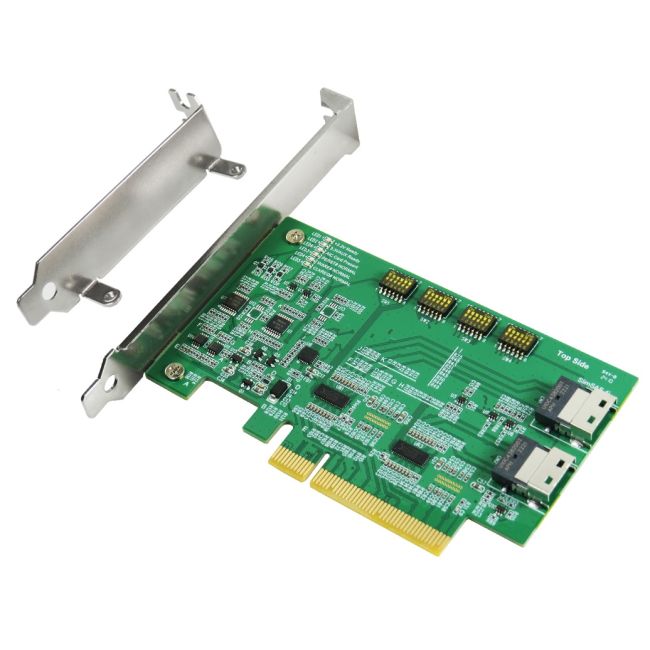

PCIe x8 GEN4 with ReDriver to SlimSAS 4i SFF-8654 Dual Port AIC

PCIe x8 GEN4 with ReDriver to SlimSAS 4i SFF-8654 Dual Port AIC

Description :

• SlimSAS 4i (SFF-8654) dual port to PCIe x8 Gen 4 convert

• Built-in SlimSAS 4i (SFF-8654) connector dual port

• Built-in ReDriver to extend PCIe 4.0 8 Lanes signals reach.

• Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.

• Built-in PCIe SMBus Switch(Address 0xE2) 4-channel with Reset Function for SlimSAS 4i (SFF-8654) SMBus and PCIe 100MHz Clock buffer SMBus control

• Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and longer cable length.

• Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and longer cable length.

• Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable length.

• LED1 Green ON indicates 3.3V ready

• LED2 Green ON indicates 3.3VAUX ready

• LED6 Green ON indicates AIC ready

• LED3 Green OFF indicates PERST# Normal (Function intentionally inverted)

• LED4 Green OFF indicates WAKE# Normal (Function intentionally inverted)

• LED5 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)

Specifications :

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with Support SFF-9402 Rev1.1

• Compliant with SFF-8654 Specification Version 1.2

Operating Systems :

• Windows 10

• Windows 11

• UEFI 2.3.1 or later
