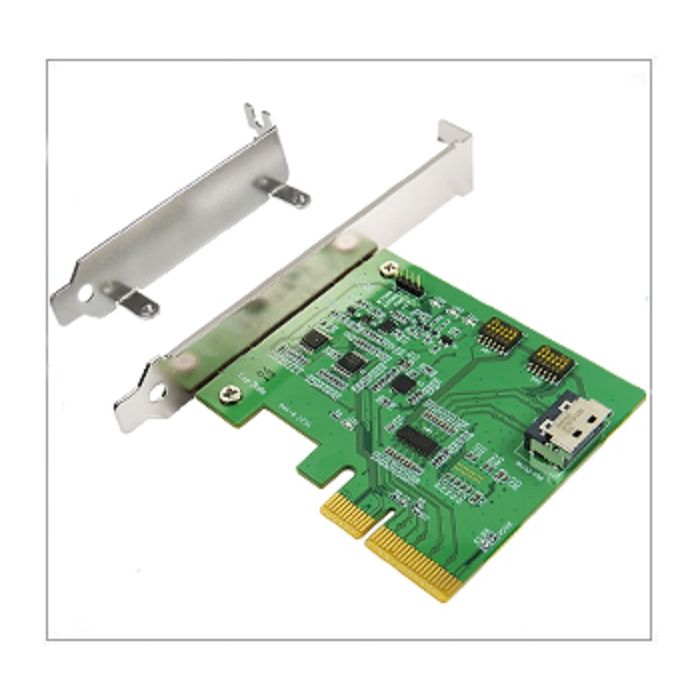

PCIe x4 Gen4 with ReDriver to MCIO 38P Add In Card

$68.75
Availability: In stock
Only 2 left
Part #
MCIO-2004-AIC

PCIe x4 Gen4 with ReDriver to MCIO 38P Add-In Card for Server BMC Management with Intel Pinout, supports Windows 7 to 10 and UEFI 2.3.1+. Compliant with PCIe Base Spec. 4.0 and SFF-TA-1016 Spec. 1.0.

The PCIe x4 Gen4 with ReDriver to MCIO 38P Add In Card is a high-performance solution for server BMC management and industrial-grade temperature ranges. This add-in card converts MCIO 38P to PCI Express x4 Gen4, making it compatible with various protocols and equipment.

The card features built-in SFF-TA-1016/MCIO 38P, 30u Gold connector, ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width and programmable linear equalization, output swing and flat gain. Additionally, the card has a built-in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, and an SMBus Switch and I/O Expander for MCIO 38P PWRDIS control.

The card also supports PCIe PERST# for OOB management to remote MCIO 38P Reset and has built-in WAKE# and CLKREQ# bidirectional voltage-level translators for Open-Drain output to be used over longer trace lengths and longer cable. The card also features LED indicators to indicate AIC readiness, PCIe WAKE#, PCIe CLKREQ# and PCIe PERST# signals.

The card's design follows the Intel Pinout and is compliant with PCI Express Base Specification Rev 4.0, PCIe_CEM_SPEC_R4_V1_0_08072019_NCB and SFF-TA-1016 Specification Version 1.0. It is also compatible with various operating systems, including Windows 7, Windows 8 & 8.1, Windows 10 and UEFI 2.3.1 or later. This add-in card is the perfect solution for high-performance server and networking applications.

More Information
Part # MCIO-2004-AIC
Bar Code (UPC) 611851926304
Specifications

‌PCIe x4 Gen4 with ReDriver to MCIO 38P Add In Card

Features :

• Supports Server BMC management

• Supports Industrial Grade temperature range

• MCIO 38P to PCI Express x4 Gen4 convert

• Built- in SFF-TA-1016/MCIO 38P, 30u Gold connector

• Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provide programmable linear equalization, output swing and flat gain

• Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C(7 bits)

• Built- in SMBus Switch, Address: 0x71(7 bits)

• Built- in SMBus I/O Expander, Address: 0x20(7 bits) for MCIO 38P PWRDIS control

• Supports PCIe PERST# for OOB(out of band) management to remote MCIO 38P Reset

• Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer cable

• Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer cable

• LED1 Green LED on indicates AIC ready

• LED2 Green LED on to off indicates PCIe WAKE# signals

• LED3 Green LED on to off indicates PCIe CLKREQ# signals

• LED4 Green LED on to off indicates PCIe PERST# signals

Design follows the Intel Pinout.

Specifications :

• PCI Express Base Specification Rev 4.0

• PCIe_CEM_SPEC_R4_V1_0_08072019_NCB

• Compliant with SFF-TA-1016 Specification Version 1.0

Operating System Support :

• Windows 7

• Windows 8 &8.1

• Windows 10

• UEFI 2.3.1 or later

Micro SATA Cables PN # MCIO-2004-AIC
