PCIe x16 GPU Solution KIT Cable: 50cm PCIe 5.0
PCIe x16 GPU Solution KIT Cable: 50cm PCIe.
More Information
| Part # | GPU-2474-KIT |
| Bar Code (UPC) | 611851928544 |

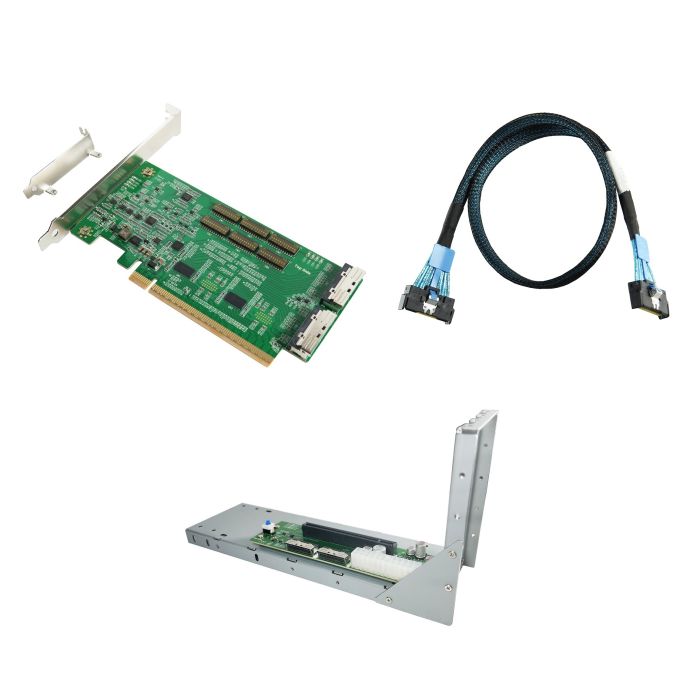

| Specifications | Technical Product Descriptions ITEM 01 · ADD-IN CARD · PN: MCIO-2203-16X PCIe x16 GEN 5 with ReDriver — MCIO 74P Dual Port Add-in-Card Micro SATA Cables · Part # MCIO-2203-16X A high-performance PCIe x16 Gen 5 expansion card that converts a standard PCIe CEM host slot into two MCIO 74-pin (SFF-TA-1016) output ports. At its core is an integrated active ReDriver IC that re-amplifies, re-shapes, and re-times all 16 PCIe Gen 5 differential pairs at 32 GT/s per lane — extending reliable reach over PCB traces and cables without signal degradation. The card includes sophisticated on-board power management: a 12V TVS-protected input, a high-side N-MOS FET power controller, a PWM 12V-to-3.3V buck converter (5A, Eco-mode), and a 3.3V load switch with automatic restart on supervisor fault. Signal sideband management is handled through a 100 MHz clock buffer, SMBus switch, I/O expander (for out-of-band reset), and dedicated PERST#, WAKE#, and CLKREQ# bus buffer gates — all enabling robust OOB management of attached MCIO devices. Host Interface PCIe x16 GEN 5 (32 GT/s/lane) Device Ports 2× MCIO 74P (SFF-TA-1016) Signal Conditioning Integrated PCIe 5.0 ReDriver Form Factor PCIe CEM Add-in Card Power Input PCIe CEM +12V (TVS protected) Backward Compat. PCIe Gen 4 / Gen 3 (auto-neg) Connector Plating 30μ" (0.38μm) min Au mating area OOB Management
SMBus, PERST#, WAKE#, CLKREQ#
I
TEM 02 · CABLE · PN: MCIO-2362-50
MCIO 74P to MCIO 74P Cable — PCIe GEN 5 · 50 cm
Micro SATA Cables · Part # MCIO-2362-50
A shielded, twinaxial 50 cm interconnect cable terminated at both ends with MCIO 74-pin (SFF-TA-1016) connectors. Engineered specifically for PCIe Gen 5 signaling requirements, the cable construction uses individually shielded differential pairs with controlled 85 Ω ±10% impedance to minimize jitter, crosstalk, and EMI. Each of the 74 pins carries its assigned PCIe, power, or sideband signal through low-loss conductors that sustain the full 32 GT/s per-lane data rate. Gold-plated contacts ensure low-resistance, corrosion-resistant mating, and the connector bodies support pull-tab or latch retention for secure seating in vibration-prone server environments. This cable is the specified companion to the MCIO-2203-16X add-in card, connecting its MCIO output ports to MCIO-equipped backplanes, retimers, or expansion device
Connector A & B
74-pin MCIO (SFF-TA-1016) M/M
Cable Length
50 cm (500 mm)
PCIe Support
Gen 1 / 2 / 3 / 4 / 5
Data Rate
Up to 32 GT/s per lane
Impedance
85 Ω ±10% differential
Construction
Twinaxial, low-loss, full shield
Compliance
PCI-SIG PCIe 5.0, SFF-TA-1016, RoHS
Operating Temp.
0 °C to 70 °C
ITEM 03 · BRIDGE / SLOT CARD · HOT PLUG ENABLED
MCIO 74P x2 to PCIe x16 Slot — Hot-Plug Bridge Card
Micro SATA Cables · MCIO 74P Dual-Input → PCIe x16 Slot (Hot Plug)
The inverse counterpart to the MCIO-2203-16X, this bridge card accepts two incoming MCIO 74-pin (x8 lane) cable connections and presents a full PCIe x16 mechanical and electrical slot output — enabling any standard PCIe add-in card (GPU, accelerator, NVMe controller, SmartNIC, etc.) to be driven from MCIO cable sources rather than a direct motherboard slot. The hot-plug capability means the inserted PCIe device can be powered on, connected, and initialized without requiring a full system reboot, making it particularly suited for server platforms that demand live storage maintenance and accelerator swaps. An integrated 6-pin GPU-style auxiliary power connector supplies the 12 V rail required by the inserted card, with an on-board 6A 12V-to-3.3V buck regulator providing local 3.3V auxiliary power. The card operates in x8 mode with a single MCIO input connected, and x16 mode when both MCIO inputs are used — provided the host CPU/BIOS supports x16 bifurcation into two x8 paths from the same port group.
Input Ports
2× MCIO 74P (SFF-TA-1016), x8 each
Output Slot
PCIe x16 (CEM) mechanical slot
PCIe Generation
Gen 5 (32 GT/s/lane)
Lane Width
x16 (dual-input) / x8 (single-input)
Hot Plug
Yes — PCIe hot-plug compliant
At Power
6-pin GPU power input
3.3V Regulator
6A 12V→3.3V on-board buck
PCB
85 Ω ultra-low-loss, Amphenol SMT slot
|
| Faq Articles | 2, What is the PCIe Gen4 support? |
