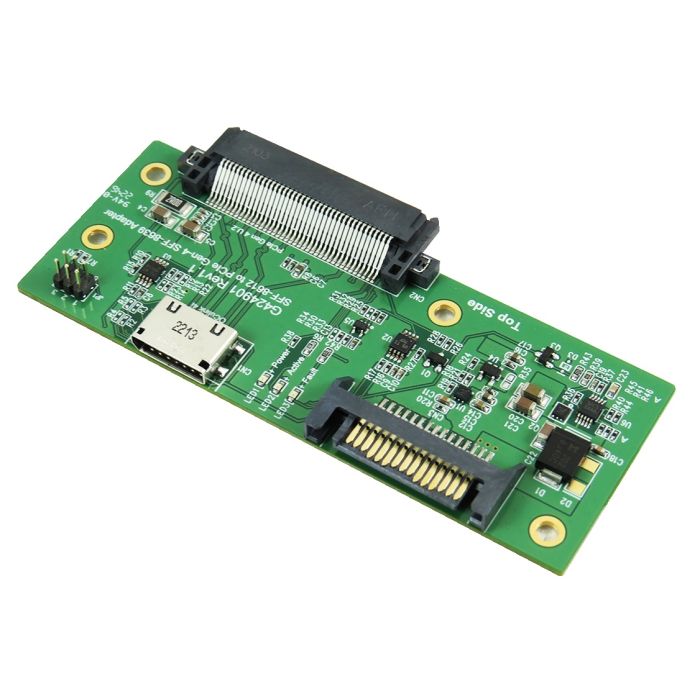

PCIe Gen4 16GT/s OCulink 4i(SFF-8612) for U.2 SSD (SFF-8639) Adapter

‌PCIe Gen4 16GT/s OCulink (SFF-8612) for U.2 SSD (SFF-8639) Adapter

Features :

• U.2(SFF-8639) to SFF-8612 OCulink convert
• Build in SATA 15-pin power connector
• Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
• Build in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
• Oculink 4i to U.2 NVMe supports SMBus Hot Plug
• Supports U.2 PWRDIS function
• Input +12V with 40V, 5A Schottky barrier rectifiers
• Input +12V High-Side Protection Controller with Charge pump gate driver for external N-Channel MOSFET
• Input +12V Overvoltage Protection
• Input +12V Undervoltage Lockout Protection
• Input 3.3VAUX with Load Switch Protection
• LED 1 Green LED on indicates SSD power ready
• LED 2 Red LED Blinking indicates SSD active status
• LED 3 Green LED on indicates +12V power Fault
• LED 1 Red LED Blinking indicates SSD active status
• LED 2 Green LED on indicates SSD power ready

Specifications :

• Compliant with NVM Express 1.0a
• Support PCI Express Base Specification Rev 4.0
• Support SSD_Form_Factor_Version1_a
• Compliant with PCIe_SFF-8639_R3.0_V1.0
• Compliant with PCI_Express_OCuLink_1.0
• Can support the following Broadcom Products :

For Broadcom 96xx PCIe 4.0, 24G SAS MegaRAID and eHBA Tri-Mode Storage Adapters:

•  MegaRAID 9670W-16i
•  MegaRAID 9670-24i
•  MegaRAID 9660-16i
•  eHBA 9620-16i
•  eHBA 9600-24i
•  eHBA 9600-16i
•  eHBA 9600-8e8i

Application case 2:

For Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters:

•  MegaRAID 9560-16i
•  MegaRAID 9560-8i
•  MegaRAID 9580-8i8e
•  HBA 9500-16i
•  HBA 9500-8i
•  P411W-32P

Applications :

Servers - HBA(Host Bus Adapter)

Data Center ※ Storage Racks

Storage Controller

Servers RAIDs(Redundant Array of Independent Disks)

Routers

Switches

Micro SATA Cables PN # OCU-1706-U2
