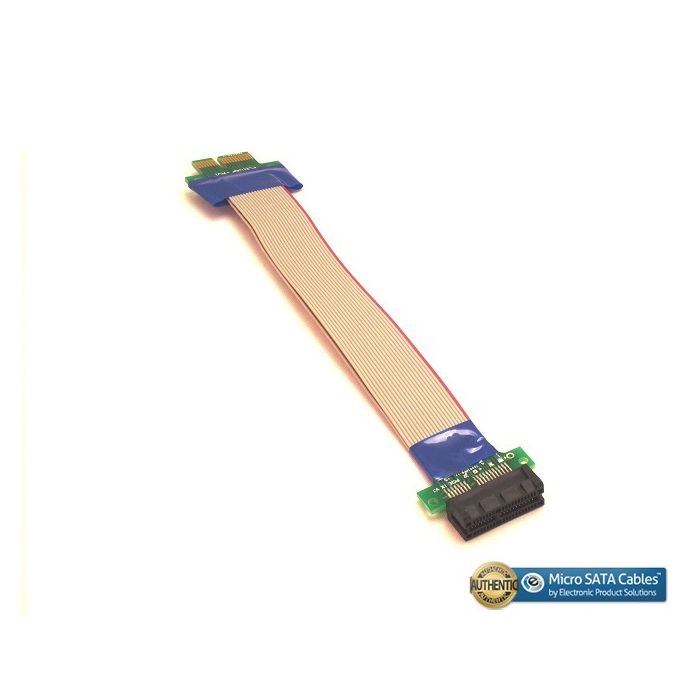

PCI-E Express 1X Riser Card with Flexible Cable

Overview:

The PCI-E Express 1X Riser Card with Flexible Cable is designed to extend and reposition a PCIe x1 slot in a computer system. This riser card allows for the installation of PCIe x1 expansion cards in cases where direct installation may be impractical, such as in compact or custom-built enclosures. The flexible cable provides added versatility for adjusting the placement of the expansion card, optimizing airflow, and improving system organization.

Technical Specifications:

Type: PCI-E Express 1X Riser Card with Flexible Cable

Cable Length: Typically 6 inches to 12 inches (varies by model)

Connectors:

PCIe Slot Connector: PCIe x1 Male

Expansion Card Slot: PCIe x1 Female

Cable Type: Flexible flat ribbon cable

Material: High-quality PCB and cable materials with gold-plated connectors

Design:

Connector Build: Robustly designed PCIe connectors for secure and stable connections

Cable Construction: Flexible ribbon cable for easy routing and adjustment in tight or complex cases

PCB Material: High-quality printed circuit board (PCB) with durable construction for reliable signal transmission

Insulation: Shielded to minimize electromagnetic interference (EMI) and ensure signal integrity

Performance:

Data Transfer Rate: Supports PCIe x1 data transfer rates up to 5 Gbps (PCIe 2.0) or up to 8 Gbps (PCIe 3.0), depending on the PCIe version of the system

Compatibility: Compatible with PCIe x1 expansion cards and motherboards with available PCIe x1 slots

Signal Integrity: Designed to maintain high signal integrity over the length of the cable

Applications:

System Upgrades: Enables the use of PCIe x1 expansion cards in systems where direct installation may be obstructed or impractical

Compact Cases: Ideal for compact or small form factor cases where space constraints require repositioning of PCIe cards

Custom Builds: Useful in custom-built or modded systems to optimize card placement and improve airflow

Key Features:

Flexible Cable: Allows for easy routing and adjustment of the PCIe expansion card, providing versatility in system setup

Secure Connections: Gold-plated connectors ensure reliable and stable connections with minimal signal degradation

High-Speed Performance: Supports high-speed data transfer rates for PCIe x1 cards, maintaining system performance

Durable Construction: Built with high-quality materials for long-lasting durability and reliability

Easy Installation: Simple plug-and-play design for straightforward installation without the need for additional drivers or software

Usage Notes:

Ensure the PCIe x1 male connector is securely inserted into the motherboard’s PCIe x1 slot

Connect the PCIe x1 female connector to the expansion card, ensuring a snug and secure fit

Route the flexible cable to avoid interference with other components and to optimize airflow within the case

Handle the riser card and cable carefully to avoid bending or damaging the connectors and internal wiring

Additional Information:

Safety Precautions: Handle with care to prevent damage to the connectors and internal wiring

Compatibility Check: Verify that your expansion card and motherboard are compatible with PCIe x1 standards for optimal performance

Connection Tips: Properly align and connect all connectors to ensure stable operation and avoid connection issues‌
