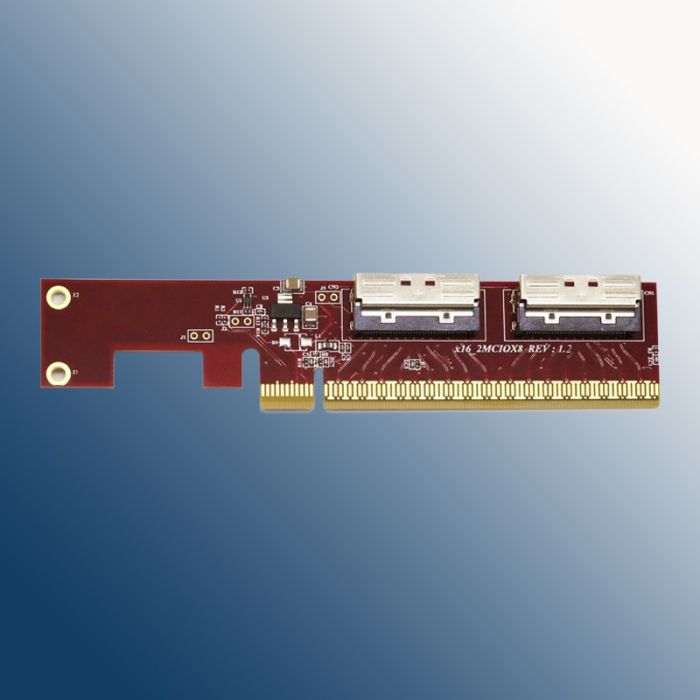

PCIe GEN 5 x16 to Two MCIO Expansion Card 8I Adapter

‌Key Specifications:

Interface (Host Side):

PCI Express 5.0 x16 (84.16 GT/s total theoretical bandwidth)

Expansion Interfaces (Device Side):

2 × MCIO 8i connectors

Each MCIO 8i supports up to 8 lanes (x8 PCIe)

Compliant with OCP NIC 3.0, E1.S, and U.2/U.3 storage architectures (depending on MCIO cable/pinout)

Protocol Support:

PCIe Gen 5 / Gen 4 / Gen 3 backward compatible

NVMe, CXL (if supported by platform)

Data Rate Support:

Up to 32 GT/s per lane (Gen 5)

Total throughput up to 128 GB/s full duplex across x16 host link

Connector Type:

PCIe: Standard x16 gold-finger edge connector

MCIO: SFF-TA-1016 standard connectors (Mini Cool Edge IO)

Form Factor:

Low-profile or full-height bracket options

Active or passive cooling depending on SKU

Power Requirements:

Powered via PCIe slot (optional auxiliary power connector depending on target configuration)

Compliance:

PCI-SIG compliant

RoHS, CE, FCC, UL (varies by manufacturer)
