OCuLink SFF-8611 Male Plug to Right Angled Male Cable Assembly -20 Inches

$19.75
Availability: Out of stock
Part #
OCU-1293-CBL

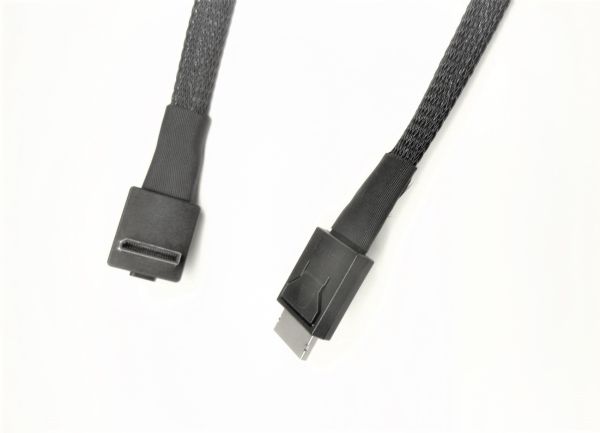

Straight OCuLink SFF-8611 Male Plug Connector to Right Angle OCuLink SFF-8611 Male Connector Cable length is 20 Inches

his cable is constructed with high-quality materials to ensure durability

this cable provides ample flexibility for your setup needs while maintaining high-quality signal transmission.

The straight male plug connector on one end and the right angle male connector on the other end ensure a secure and stable connection

Introducing our Straight OCuLink SFF-8611 Male Plug Connector to Right Angle OCuLink SFF-8611 Male Connector Cable, the ideal solution for your high-speed data transfer needs. This cable is designed to connect your OCuLink-enabled devices with ease and efficiency. With a cable length of 20 inches, this cable provides ample flexibility for your setup needs while maintaining high-quality signal transmission.

The straight male plug connector on one end and the right angle male connector on the other end ensure a secure and stable connection between devices. This cable is constructed with high-quality materials to ensure durability and longevity. The connectors are made with precision-machined contacts that provide a reliable and consistent connection. The cable itself is made with high-quality shielding that reduces interference and ensures fast data transfer rates.

Micro SATA Cables PN # OCU-1293-CBL

More Information
Part # OCU-1293-CBL
Bar Code (UPC) 646791002870
Specifications
  • Complies with : T10/Serial Attached SCSI (24 Gbps SAS-4
  • SFF Committe / SFF-8611 Free Cable /SFF-8612 Fixed connector
  • PCIe OCulink
  • Gen3 (8 GT/s) and Gen4 (16 GT/s)

Features and Benefits :

  • Flexible pinout concept (continuous Ground-Signal-Signal-Ground) optimized for high-speed applications. 4 lines and 8 lines.
  • Multipke protocol solutions,Complies with T10/24 Gbps SAS-4; SFF-8611 Free Cable/SFF-8612 Fixed Connector; PCIe OCulink Gen 3 8GT/s and Gen 4 16 GT/s
  • Extremely small Form Factor : 5H X 15W X 9D
  • Staggered, reliable and constant dual-row contatc configuration allows for hot plug ability.
  • Provides an internal or external solution, with a low mated height that fits within the maximum component height of PCIe add in cards.

Features:

  • Cable Length: 20 Inches / 0.5 Meter
  • OCuLink 4i Plugs with active latch
  • OCulink 42 Position Cable
  • Wire size (AWG) = 32
  • Impedance = 85 ohms
  • RoHS Compliant

Mechanical :

  • Contact Retention to Housing : 10N
  • Mating Force : 40N Max
  • Unmating Force : 8N min
  • Durability (min) : 250 Cycle

Electrical Performance :

  • Voltage Max :30V AC (RMS)/DC
  • Current Max : 0.5A
  • Contact Resistance : 1 ohm (MAX)
  • Dielectric Withstanding Voltage : 660VAC
  • Insulation Resistance : 10 Meg Ohm (MAX)

Signal Integrity :

  • Mated Connector Impedance : 85% + 10%
  • Common Mode Impedance : meet PCIe Gen 3 and SAS4.0 specification
  • Insertion loss : meet PCIe Gen3 and SAS4.0 specification
  • Maximum Crosstalk : eet PCIe Gen 3 and SAS4.0 specification

Micro SATA Cables PN # OCU-1293-CBL
