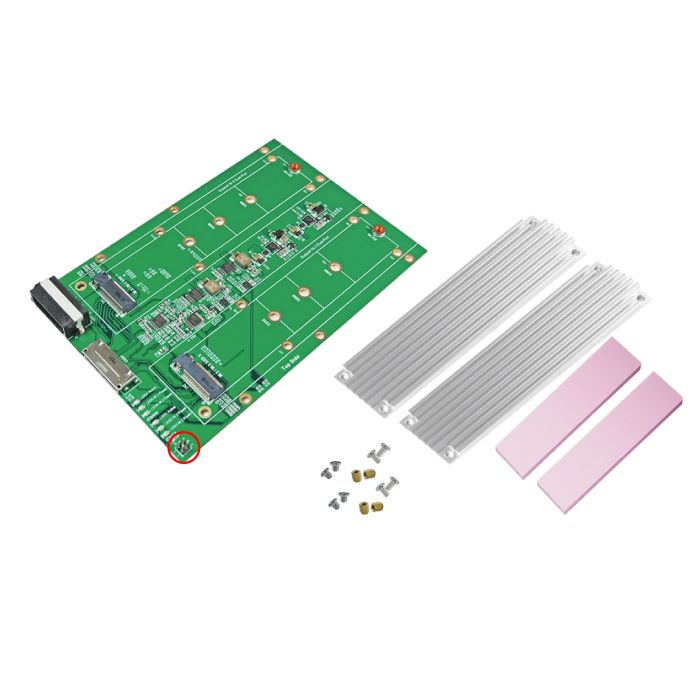

Oculink 8x to M.2/M.3 SSD Dual Port Adapter

Part #OCU-1664-8X
$72.75

‌Oculink 8x to M.2/M.3 SSDx2 Dual Port Adapter

More Information

Part # OCU-1664-8X
Bar Code (UPC) 646791004317
Specifications

OCulink 8i for M.3 NF1 SSD & M.2 NVMe SSD Dual Port Adapter

The adapter card is used to support bifurcated x8, x16 PCIe Gen 3 AIC or follows the SFF-9402 pinout specification on RAID Card.

Features :

  • Built-in +12V Hot Plug protection power module for M.3 NVMe SSD
  • Built-in +3.3V Hot Plug protection power module for M.2 NVMe SSD
  • SFF-8612 OCulink 8i to M.2, M.3 NVMe convert
  • Built-in SFF-8612 8i connector, pin-out defined by SFF-9402
  • Built-in M.2 M-key connector, pin-out defined by PCI Express M.2 Specification
  • LED 1, LED4 Red LED Blinking indicates SSD active status
  • LED 2, LED 5 Green LED on indicates M.3 SSD power ready
  • LED 3, LED 6 Green LED on indicates M.2 SSD power ready
Specifications :
  • Compliant with NVM Express 1.2a
  • Supports PCI Express Base Specification Rev 3.1
  • Supports PCI Express M.2 Specification Revision 3.0, Version 1.2 _06262019
  • Compliant with PCI_Express_OCuLink_1.0a
  • Support Samsung M.3 NF1 Datasheet_v0.4
Supports the following form factor M.2 & M.3 SSD :
  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Type 22110-D2-B-M: 110mm(L) x 22mm(W)
  • Type 305110-D2-B-M: 110mm(L) x 30.5mm(W) for M.3 NF1
Micro SATA Cables PN # OCU-1664-8X
