✓ In stock

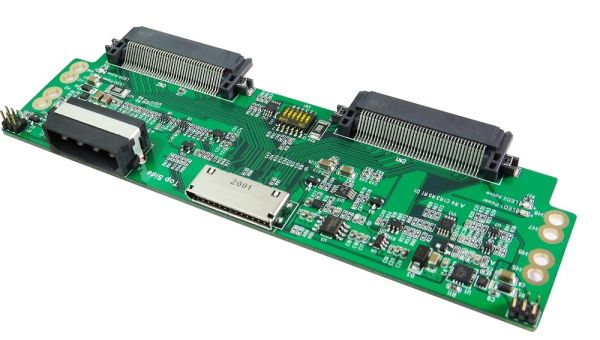

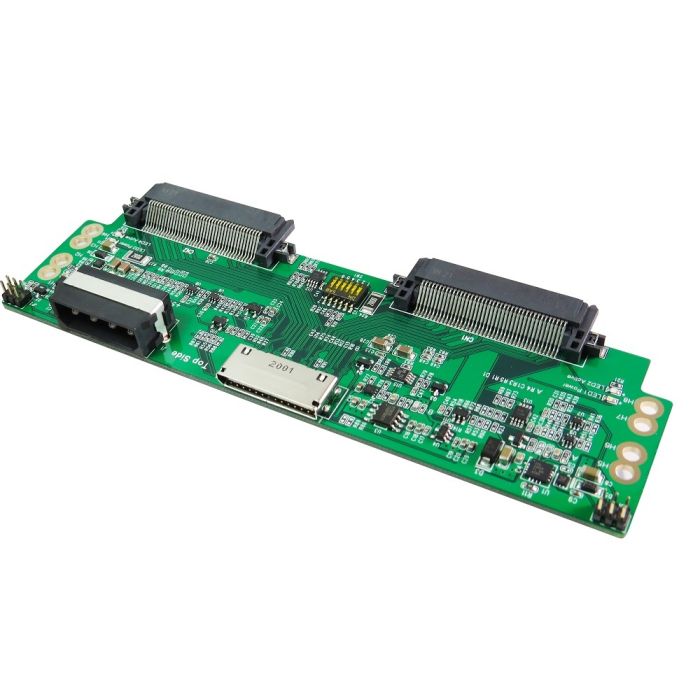

OCulink 8i PCIe GEN 4.0 for U.2 Dual Ports Adapter
OCulink 8i PCIe Gen 4.0 for U.2 Dual Ports Adapter - High-Speed Data Transfer, Dual Port Design, Compatible with PCIe Gen 4.0 and U.2 Interfaces
More Information
| Part # | OCU-1768-8I |
| Bar Code (UPC) | 611851924614 |
| Specifications | OCulink 8i PCIe GEN 4.0 for U.2 Dual Ports Adapter : Supports the following uses : OCulink 8i PCIe 4.0 to U.2 Dual port for PCIe x16, x8 Add-in Card OCulink 8i PCIe 4.0 to U.2 Dual port for Broadcom MegaRAID & HBA Tri-Mode Storage Adapter OCulink 8i PCIe 4.0 to U.2 Dual port for BittWare DS-250-SoC, 520N-MX Features : â—†U.2 dual ports to OCulink 8i(SFF-8612) convert â—†Built-in OCulink 8i connector, pin-out defined by SFF-9402 Rev1.1 â—†Built-in two U.2 SFF-8639 connector â—†Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual ports â—† Programmable Current Limit: 6.5A â—† Programmable Inrush Current Slew Rate â—† Thermal shutdown protection and fault alert â—† Back-to-Back (B2B) FET Operation â—† Supports U.2 to PCIe CLKREQ#, WAKE# â—† Supports U.2 PWRDIS Implementation â—†Built-in SMBus Hot Swappable 2-Wire Bus Buffer â—† Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and â—†HBA Tri-Mode Storage Adapters â—†Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID â—†HBA Tri-Mode Storage Adapters â—† LED2, LED4 Green LED on indicates U.2 NVMe SSD power ready â—†LED1, LED3 RED LED Blinking indicates U.2 active status Specifications : â—† Compliant with NVM Express 1.4 â—† Support PCI Express Base Specification Rev 4.0 â—† Support SSD_Form_Factor_Version1_a â—† Compliant with PCIe_SFF-8639_R3.0_V1.0 â—† Compliant with SFF-TA-1001 Rev1.1 â—† Compliant with PCI_Express_OCuLink_1.0 â—† Compliant with SFF-9402 Rev1.1 < p>Micro SATA Cables PN # OCU-1768-8IThis unit can be used with Micro SATA Cables Part#OCU-1615-8i This unit can be used with Micro SATA Cables Part# MIC80-7701 Micro SATA Cables part# OCU-1768-8I |
