Mini SAS HD 8X to PCIe X8 Slot Adapter

$56.75
Availability: In stock
Only 5 left
Part #
MS-1913-8XSA

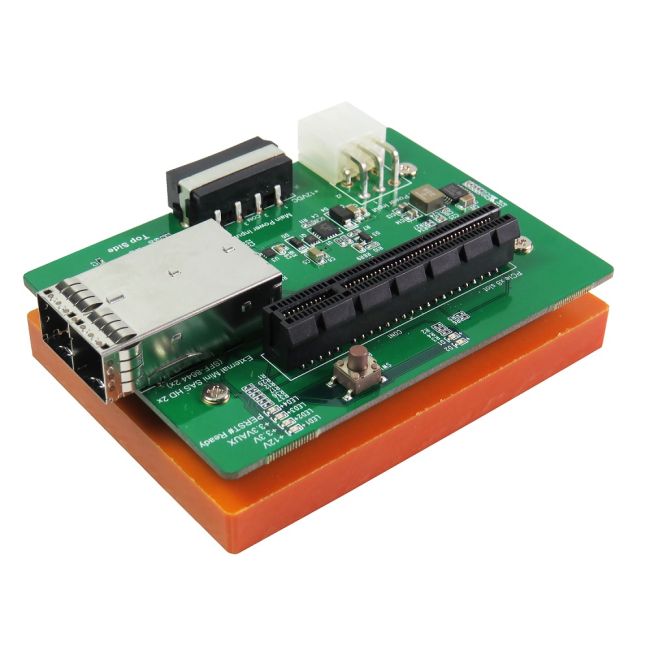

‌MiniSAS HD 8X to PCIe X8 slot Adapter

The adapter features a compact and robust design that ensures durability and reliability in demanding environments. It is equipped with a Mini SAS HD 8X connector on one end, which is compatible with SAS and SATA devices. On the other end, it has a PCIe X8 slot that is compatible with a wide range of PCIe-based systems, including servers, workstations, and storage arrays.

The Mini SAS HD 8X to PCIe X8 Slot Adapter supports data transfer rates of up to 48 Gbps, making it ideal for high-performance applications that require fast and reliable data transfer. It also supports RAID configurations, allowing users to set up redundant storage systems for enhanced data protection.

Micro SATA Cables PN # MS-1913-8XSA

More Information
Part # MS-1913-8XSA
Bar Code (UPC) 611851925666
Specifications

MiniSAS HD 8X to PCIe X8 Slot Adapter

MIcro SATA Cables PN # MS-1913-8XSA

Features :

  • External miniSAS 2x(SFF-8644) to PCIe x8 convert
  • Built-in SFF-8644 2x connector
  • Built-in PCIe x8 Slot
  • Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V

- Programmable Current Limit: 6.5A

- Programmable Inrush Current Slew Rate

- Thermal shutdown protection and fault alert

- Back-to-Back (B2B) FET Operation

  • PWM synchronous 12V to 3.3V buck converter Power

- 4A maximum output current

- Over Current Protection

- Under Voltage Protection

- Under voltage lock out protection (UVLO) monitors

- Thermal shutdown protection

- ESD Human Body Mode(HBM)/2KV

  • Built-in 3.3V Power Load Switch for PCIe +3.3V, 4A
  • 12V to 3.3V LDO buck converter Power
  • Built-in 3.3V Power Load Switch for PCIe 3.3Vaux, 500mA
  • Built-in SMBus Hot Swappable 2-Wire Bus Buffer
  • LED1 PCIe +3.3V power ready
  • LED3 PCIe 3.3Vaux power ready
  • LED4 PCIe +3.3 power ready

Specifications :

  • PCI Express Base Specification Rev 3.0
  • PCIe CEM Rev3.0
  • PCI_Express_External_Cabling_R3.0a_06042020_NCB

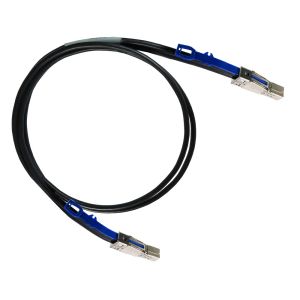

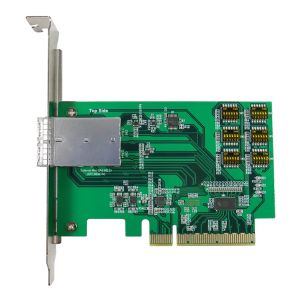

NOTE :  Often Sold with our PCIe X8 to GEN 3 with Redriver to External MiniSAS HD 8X Adapter (PN # MS-1912-8X) and with 2 X of our External MiniSAS HD 4X (SFF-8644) Cable ( PN # MS-1911-1M) These items are sold seperately.

Micro SATA Cables PN # MS-1913-8XSA
