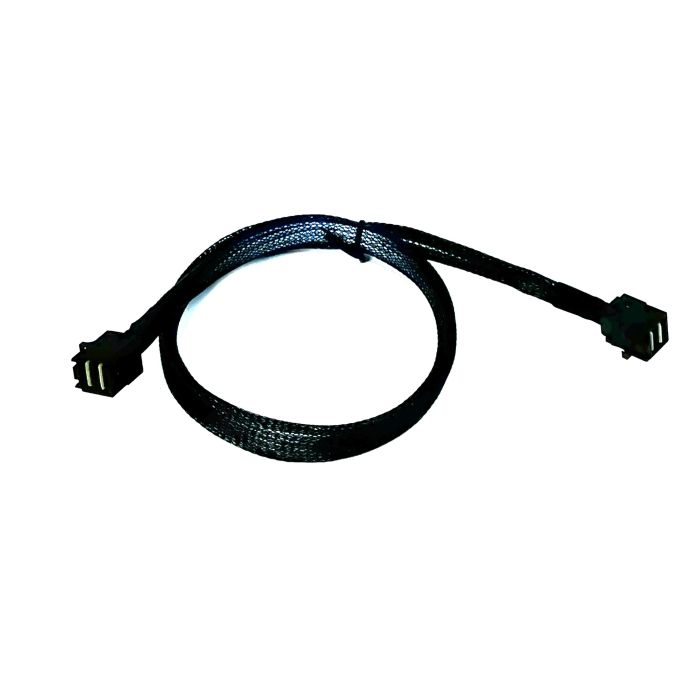

Mini SAS HD SFF-8643 to SFF-8643 Cable 50 CM‌

‌

Technical Description:

The Mini SAS HD (High Density) SFF-8643 to SFF-8643 Cable – 50 cm is a high-performance internal data cable designed for connecting SAS (Serial Attached SCSI) devices within a server or storage system. Featuring SFF-8643 connectors on both ends, this cable supports high-speed data transfer between a host controller (such as a RAID card or HBA) and a backplane or other SAS-enabled storage device.

Specifications:

Cable Type: Mini SAS HD Internal Cable

Connector A: SFF-8643 (36-pin Mini SAS HD)

Connector B: SFF-8643 (36-pin Mini SAS HD)

Cable Length: 50 cm (approximately 19.7 inches)

Interface Standard: SAS 3.0 (12 Gbps per lane), backward compatible with SAS 2.0 (6 Gbps)

Lane Support: 4 lanes (x4)

Data Rate: Up to 48 Gbps total bandwidth (12 Gbps per lane x 4)

Cable Construction: Shielded, low-loss, high-flex cable for optimal signal integrity

Use Case: Internal connection between RAID/HBA controller and storage backplane, SAS expanders, or enclosures

Compliance: RoHS compliant

Operating Temperature: 0°C to 60°C

Application: Enterprise storage systems, data centers, high-performance workstations

Features:

High-density design for tight server enclosures

Secure, latching connectors to ensure stable connection

Engineered for low signal loss and crosstalk minimization

Fully compatible with SAS/SATA environments when paired with the appropriate hardware

MIcro SATA Cables Part#MS-2297-50
