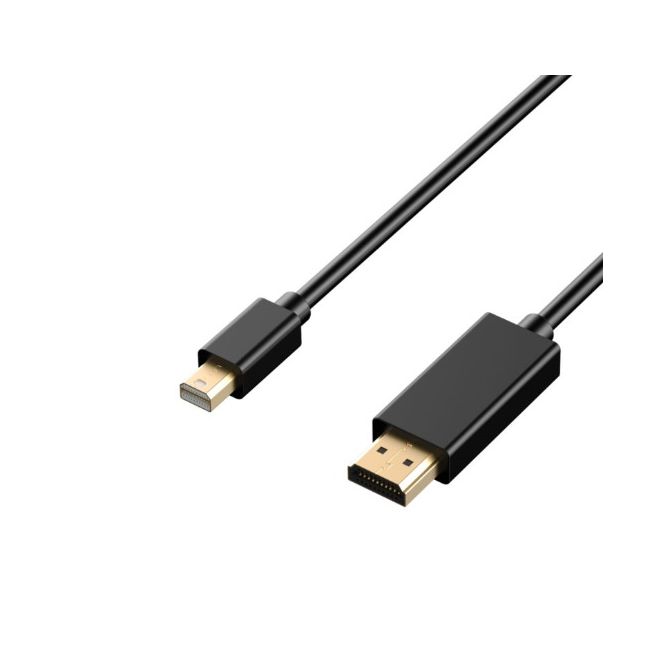

Mini DP Male to HDMI Male Adapter Black Cable

$9.75
Availability: In stock
Only 307 left
Part #
MDP-1227-HDAC

This Mini DP Male to HDMI Male Adapter Cable‌ supports Mini DisplayPort 1.1a input and HDMI1.3b output. Color: Black, Length: 1.8 Meters.

Description:

The Mini DisplayPort to HDMI signal format converter seamlessly connects next generation Display Port based MacBook, MacBook Pro, or MacBook Air with a Mini DisplayPort to high definition displays. Mini DisplayPort offers a unified, scalable, and cost effective interface for embedded and external display applications.

Supports

  • Mini DisplayPort 1.1a input and HDMI1.3b output.
  • HDMI highest video resolution 1080p.
  • HDMI 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
  • HDMI 12bit per channel (36bit all channel) deep color.
  • Uncompressed audio such as LPCM.
  • Compressed audio such as DTS Digital, Dolby Digital including DTS-HD and Dolby True HD).

Specifications

  • Cable length is 1.8 Meters
  • Powered from Mini DisplayPort source
  • Input Video Signal 5 Volts p-p (TTL)
  • Maximum Single Link Range 1920x1080P
  • Output Video HDMI1.3b
  • Input/Output Connector Input: Mini DisplayPort Male 20pin
  • Output: HDMI Female Type A 19pin
  • Vertical Frequency Range 50/60Hz
  • Video Amplifier Bandwidth 2.25Gbps/225MHz
  • Resolutions(HDTV)
  • Interlaced(50&60Hz) 480i,576i,1080i
  • Progressive(50&60Hz) 480p,576p,720p,1080p
  • Operating Temperature 0 to +70
  • Operating Humidity 10% to 85 % RH (no condensation)
  • Storage Temperature -10 to +80
  • Storage Humidity 5% to 90 % RH (no condensation)
  • No external power needed
  • Power consumption (Max) 3W
  • Regulatory Approvals :Converter Unit FCC,CE,UL : Power Supply UL,CE,FCC

Micro SATA Cables PN # MDP-1227-HDAC

More Information
Part # MDP-1227-HDAC
Bar Code (UPC) 646791001071
