MCIO x16 (148) to two x8 (74pin) MCIO to support PCIe Gen6 50 cm
MCIO x16 (148) to two x8 (74pin) MCIO to support PCIe Gen6, 50 cm

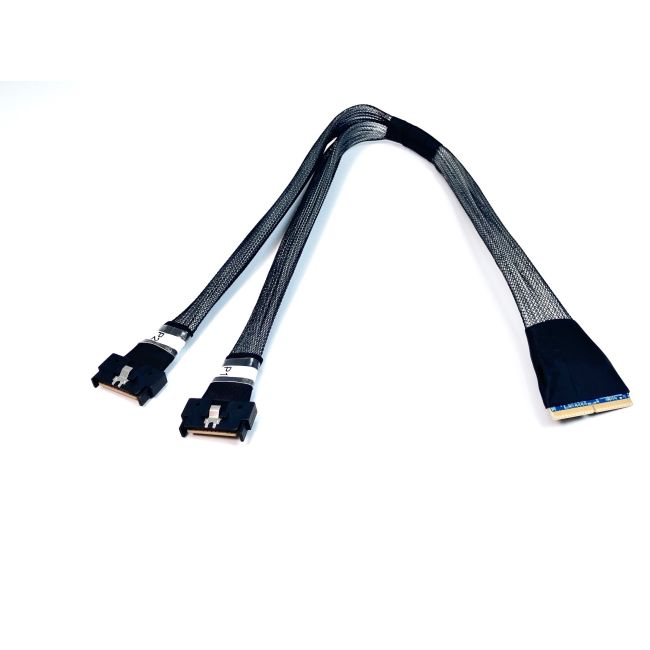

The MCIO (Mini Cool Edge IO) cable assembly with x16 (148-pin) to two x8 (74-pin) connectors is engineered for PCIe Gen6, ensuring seamless connectivity and optimal data transfer rates up to 64 GT/s (gigatransfers per second). This cable assembly is 50 cm in length, making it suitable for flexible routing within server and high-performance computing environments.
MCIO x16 (148) to two x8 (74pin) MCIO to support PCIe Gen6, 50 cm
The MCIO (Mini Cool Edge IO) cable assembly with x16 (148-pin) to two x8 (74-pin) connectors is engineered for PCIe Gen6, ensuring seamless connectivity and optimal data transfer rates up to 64 GT/s ). This cable assembly is 50 cm in length, making it suitable for flexible routing within server and high-performance computing environments.
Connectors
MCIO x16 (148-pin) Connector:
Pin Count: 148
Configuration: Designed to interface with x16 MCIO slots on motherboards or other hardware.
Keying: Ensures proper alignment and secure connection.
Signal Integrity: High-quality contacts to maintain signal integrity at PCIe Gen6 speeds.
Dual MCIO x8 (74-pin) Connectors:
Pin Count: 74 each
Configuration: Designed to split the x16 connection into two x8 MCIO interfaces.
Keying: Ensures correct orientation and secure mating.
Signal Integrity: Optimized for high-speed data transfer.
Cable Specifications
Length: 50 cm (500 mm)
Construction: Shielded, low-skew, differential pair construction to minimize crosstalk and electromagnetic interference (EMI).
Bandwidth: Supports the full PCIe Gen6 bandwidth, providing up to 64 GT/s.
Data Rate: Up to 256 GB/s total throughput when utilizing both x8 links.
Performance and Compliance
PCIe Gen6 Support: Meets the specifications for PCIe Gen6, ensuring compatibility with the latest high-speed PCIe devices.
Signal Quality: Designed to minimize loss and maintain signal integrity over the 50 cm length, critical for high-speed data transfers.
Compliance: Adheres to industry standards for PCIe Gen6 and MCIO specifications.
Applications
High-Performance Computing: Suitable for connecting GPUs, high-speed storage devices, and other PCIe Gen6 peripherals.
Data Centers: Ideal for servers and data centers requiring reliable and high-speed connections.
Embedded Systems: Useful in embedded systems where space constraints require flexible and compact cabling solutions.
Installation and Use
Ease of Use: The connectors are designed for easy installation and secure connections, with keying to prevent incorrect mating.
Flexibility: The 50 cm length offers flexibility in routing within enclosures without excessive slack.
| Part # | MCIO-2146-Y |
|---|---|
| Bar Code (UPC) | 611851927417 |
