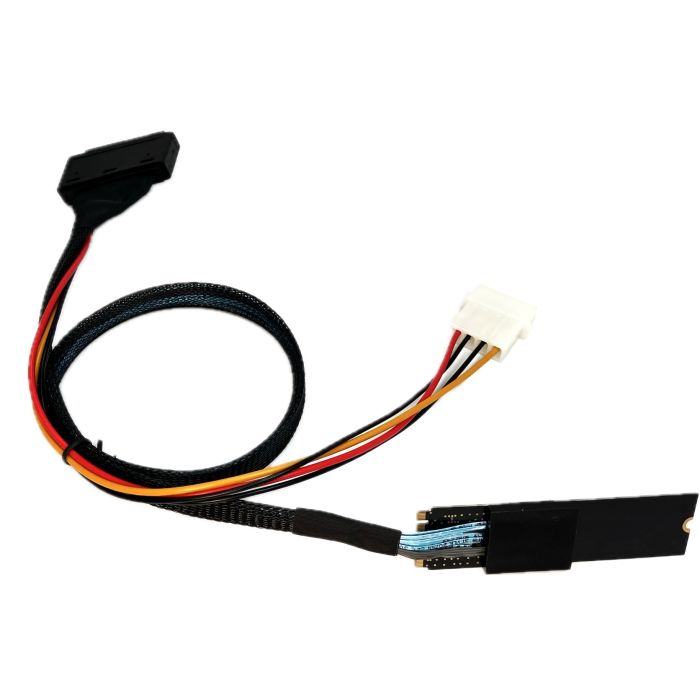

M.2 to U.2 NVMe SSD SFF-8639 Drive to M.2 Host Adapter U.2 SSD Converter -with 12 Inch 4 PIN Molex Power Cable(50CM).


‌Overview:

This M.2 to U.2 NVMe SSD adapter enables the connection of a U.2 (SFF-8639) NVMe SSD to an M.2 (PCIe) slot on a motherboard or host device. Designed for high-speed data transfer and NVMe storage expansion, this adapter supports PCIe 3.0/4.0 lanes and ensures optimal performance for enterprise and high-performance computing applications. The included 4-pin Molex power cable (50CM) provides additional power required by U.2 SSDs.

Specifications:

Connector (Host Side): M.2 M-Key (PCIe 3.0/4.0 x4)

Connector (Drive Side): U.2 SFF-8639 (NVMe SSD)

Interface Type: NVMe (PCIe-based, not SATA-compatible)

Power Connector: 4-Pin Molex (50CM / 12-inch cable included)

Supported SSDs: U.2 NVMe SSDs (e.g., Intel 750, Samsung PM1725, Micron 9100, etc.)

Supported Form Factors: 2.5-inch U.2 NVMe SSDs

Bus Speed: Supports full PCIe Gen3/Gen4 x4 bandwidth (depending on host M.2 slot)

Operating System Compatibility: Windows, Linux, and macOS (NVMe-supported OS required)

Build Material: High-quality PCB with gold-plated contacts for enhanced durability

Form Factor: Compact, lightweight, and easy to install

Features:

✔ M.2 to U.2 NVMe Conversion – Allows U.2 NVMe SSDs to be used with M.2 (PCIe) slots

✔ High-Speed Data Transfer – Supports full PCIe Gen3/Gen4 speeds for low-latency performance

✔ Additional Power Support – Includes a 4-Pin Molex power cable for U.2 SSD power requirements

✔ Plug & Play Installation – No drivers required; directly recognized by NVMe-supported operating systems

✔ Durable & Reliable – Gold-plated connectors ensure long-term stability and performance

Application Scenarios:

Upgrading Storage Solutions – Ideal for systems without U.2 ports but with available M.2 slots

Enterprise and Workstation Use – Supports high-speed U.2 NVMe SSDs for data-intensive applications

Gaming and High-Performance Computing – Improves storage performance for demanding workloads

Micro SATA Cables Part# M2-2278-4PU2
