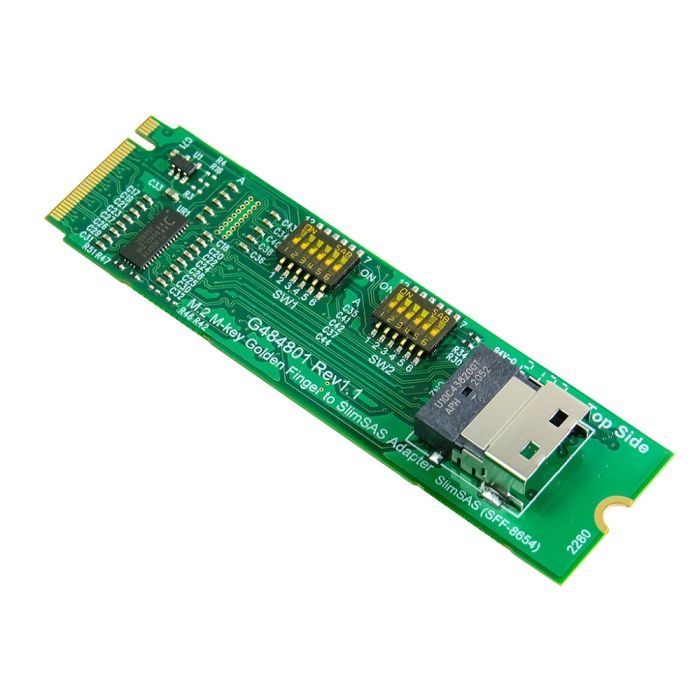

M.2 M-key PCIe Gen4 with ReDriver to SlimSAS 4i (SFF-8654) Adapter
The M2 SSD to PCIe adapter converts an M.2 (NGFF) SSD module into a PCIe add-in card, allowing customers to adopt the latest SSD technology into their existing platforms.
SlimSAS 4i (SFF-8654) interface allows you to connect to a wide range of storage devices. The adapter is designed with a built-in SFF-8654 connector and pin-out defined by SFF-9402 Rev1.1, ensuring a seamless and secure connection. One of the key features of this adapter is its built-in PCIe ReDriver, which extends the PCIe Gen4, 16GT/s differential pair signals for improved signal quality and longer transmission distances. The built-in PCIe 100MHz Clock buffer also helps to drive longer trace lengths and longer cables. The adapter also includes an SMBCLK and SMBDAT bidirectional buffer repeater, providing a reliable and high-speed connection between your storage device and the adapter. Additionally, the PERST#, WAKE# and CLKREQ# Bus Buffer Gates ensure a stable connection over longer trace lengths and longer cables. This adapter is compliant with the PCI Express Base Specification Rev 4.0 and the PCIe_CEM_SPEC_R4_V1_0_08072019_NCB, making it fully compatible with the latest industry standards. It also supports SSD_Form_Factor_Version1_a and is compliant with SFF-8654 Specification Version 1.2 and SFF-9402 Specification Version 1.1. The adapter can be used with a range of operating systems, including Windows 7, Windows 8 & 8.1, Windows 10 and UEFI 2.3.1 or later. With its compact design and reliable performance, this adapter is the ideal solution for converting your M.2 M-key PCIe Gen4 to a SlimSAS 4i (SFF-8654) interface.
Micro SATA Cables Part#SLM-1775-M2
| Part # | SLM-1775-M2 |
|---|---|
| Bar Code (UPC) | 611851924621 |
| Specifications | M.2 M-key PCIe Gen4 with ReDriver to SlimSAS 4i (SFF-8654) Adapter Features : SlimSAS 4i (SFF-8654) to PCI Express 4.0 convert Built- in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1 Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable Built- in SMBCLK, SMBDAT bidirectional buffer repeater Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable Specifications : PCI Express Base Specification Rev 4.0 PCIe_CEM_SPEC_R4_V1_0_08072019_NCB Support SSD_Form_Factor_Version1_a Compliant with SFF-8654 Specification Version 1.2 Compliant with SFF-9402 Specification Version 1.1 PCI Express M.2 Spec Rev4.0 Ver1.0 11052020 NCB Operating Systems : Windows 7 Windows 8 &8.1 Windows 10 UEFI 2.3.1 or later Micro SATA Cables PN # SLM-1775-M2 |
