Intel NUC USB 2.0 LAN Jack RJ45 10/100 Ethernet Adapter Dongle
This NUC USB 2.0 LAN Jack RJ45 10/100 Ethernet Adapter Dongle adds a 2nd Ethernet port to the NUC via internal daughtercard.
Dual-LAN Dongles for NUC5i5MY and NUC5i3MY
MapleCanyon motherboard supports internal USB 2.0 and PCIe x1/x4 connectivity.
Dongle would add a 2nd Ethernet port to the NUC via internal daughtercard.

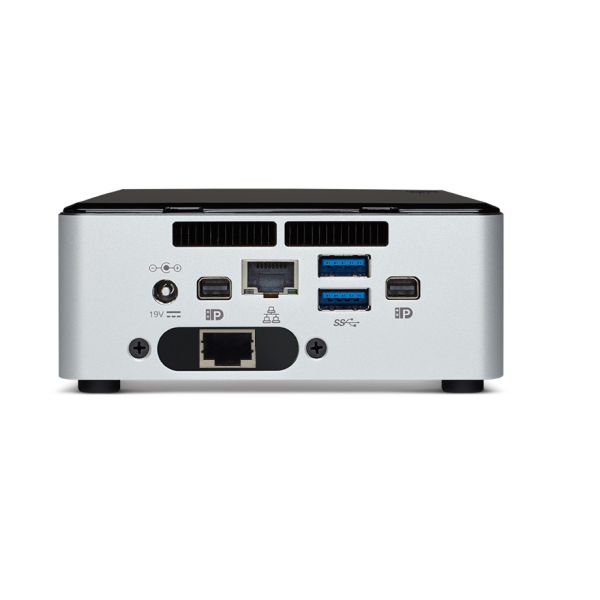

Daughtercard would expose RJ45 jack via backpanel expansion bracket.
Solution must mechanically fit in between SATA cage and backpanel expansion bracket.
USB-based 10/100Mbps dongle.
This unit is a USB 2.0 10/100 Ethernet Adapter for the Intel NUC Computer. It is the easiest solution for connecting your Intel NUC Computer to a broadband Internet modem, or building a 10/100 Base-T Ethernet network. Easy to install, the adapter unit plugs into the 8 pin USB 2.0 internal connection on the NUC motherboard and lets you connect your NUC to a cable or DSL modem through the RJ45 Lan Jack. Once installed, you can share files and peripherals with computers that are connected to the network. This simple solution adds a secondary RJ45 Ethernet port to your NUC.
USB 2.0 to LAN Adapter General Features:
· Supports USB 1.0 USB1.1 compatible USB2.0
· Fully contained nic function, hardware support TCP/IP, NETBEUI, IPX/SPX network protocol.
· Sharing network resources such as ADSL, Modem, CD-ROM, printer, scanner, etc.
· Built-in internal NUC 8 pin USB direct cable connection function, 50 times speed to general parallel cable.
· USB powered no external power required.
· Support high-speed transmission mode 12Mbps
· Single chip USB to Fast Ethernet controller RJ-45 Shield phone jack
· Switch 10Mbps or 100Mbps network automatically
· Network Speed:10Mbps and 100Mbps N-way auto-negotiation operation
· Compliant to USB interface version 1.0/1.1/2.0
· Full-speed (12Mbps) USB 1.1 device ( USB 1.1 Standard ), USB 2.0 standard
· USB LAN Adapter support all USB standard commands
· Half/Full duplex 10/100Mbps operation
· The LAN Network Card support Win95 OSR2/98/98se/ME/2000/XP/NT3.5 or above, Linux
PPN # GR-DNG-050
Part # | GR-DNG-050 |
---|---|
Bar Code (UPC) | 705105445878 |
