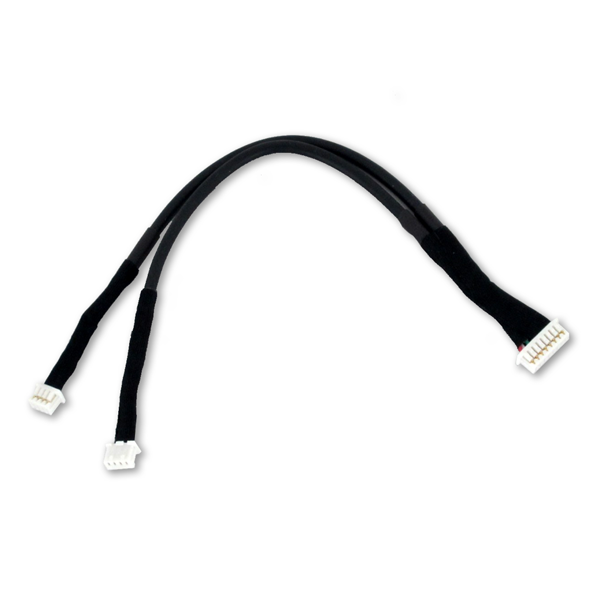

INTEL NUC Internal USB Cable - 1.25 mm 1X8 Pin to 1.25 mm Dual 1X4 Pin USB 2.0
INTEL NUC internal USB 2.0 connector cable loom.
Description:
This is an internal USB 2.0 cable loom 1 X 8 Pin Female to dual 1 X 4 connectors.
- This cable is 6 inches in length.
- Pitch is 1.25 mm 1 X 8 Pin female to 1.25 mm 2 X 4 Pin females
- This Joins or separates the internal NUC USB 2.0 connector(s) it is a 1.25 mm 1 X 8 Pin female connector to dual 1 X 4 USB 2.0 cables with female connectors.
- Wire is AWG 28.
- Cable is 2 X OD 2.5 mm
- Black color
PN # INTL-8P2X4P-6IN
| Part # | INTL-8P2X4P-6IN |
|---|---|
| Bar Code (UPC) | 643131529783 |
| Specifications | Overview The INTEL NUC Internal USB Cable is designed to facilitate internal USB 2.0 connectivity within Intel NUC systems. This cable features a 1.25 mm pitch 1x8 pin connector on one end and two 1.25 mm pitch 1x4 pin connectors on the other, providing a seamless solution for connecting internal USB devices, such as expansion cards, front panel USB ports, and other peripherals. Technical Specifications Connector Type: Connector A: 1.25 mm pitch 1x8 pin female Connector B: 1.25 mm pitch dual 1x4 pin female Cable Length: Varies (typically around 6 to 12 inches, depending on manufacturer specifications) Signal Type: USB 2.0 standard, supporting data transfer rates up to 480 Mbps Cable Construction: Conductors: High-quality copper conductors for reliable signal integrity Insulation: Durable PVC insulation for flexibility and protection against electrical interference Shielding: Adequate shielding to minimize electromagnetic interference (EMI) and crosstalk Compatibility: Specifically designed for Intel NUC systems but compatible with other systems that utilize 1.25 mm pitch internal USB connectors Operating Temperature Range: -20°C to 80°C (-4°F to 176°F), suitable for use in various environmental conditions Compliance: RoHS (Restriction of Hazardous Substances) compliant, ensuring the cable is free from hazardous materials Applications Internal USB Expansion: Ideal for connecting internal USB expansion cards, front panel USB ports, and other peripherals within Intel NUC systems. Custom Builds: Useful for custom builds where specific internal USB connections are required. Embedded Systems: Suitable for use in embedded systems where internal USB connections are needed for additional peripherals. Key Features Dual Connection: Splits a single 1x8 pin connector into two 1x4 pin connectors, providing flexibility for connecting multiple internal USB devices. High-Speed Data Transfer: Supports USB 2.0 standard for reliable data transfer rates up to 480 Mbps. Robust Design: Constructed with high-quality materials to ensure durability and consistent performance. Compact and Flexible: The cable's compact design and flexibility make it easy to route within tight spaces of small form factor systems like Intel NUCs. Easy Installation: Simplifies the process of connecting internal USB devices, making it a convenient accessory for system builders and IT professionals. |
