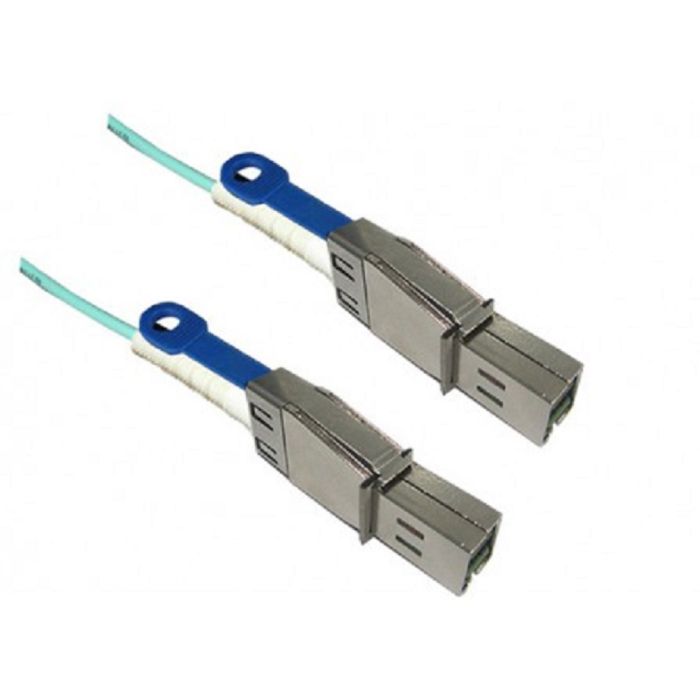

HD Mini SAS (8644) to HD Mini SAS (8644) AOC 3 Meter

$166.25
Availability: Out of stock
Part #
SFF-1713-3M

HD Mini SAS (8644) to HD Mini SAS (8644) AOC 3 Meter

HD Mini SAS (8644) to HD Mini SAS (8644) AOC 3 Meter

Characteristics:

SFF-8644 HD Mini SAS Fiber Optic Cable

Description:

Mini-SAS HD active optical cable (AOC) is of high- performance with full-duplex and aggregate 48-Gbps bandwidth for SAS-3 protocol in storage applications. Compared to conventional copper cables, longer, lighter, and flexible optical cables enable the ease of complicated data-center cablings because of its small cable diameter of only 3-mm. High-quality of 850-nm VCSELs and PIN PDs are utilized in the AOC cables, with superior signal integrity and bit-error-rate performance, which enables reliable operation performance.

Material:

  • Compliant to SAS-3 of 12-Gbps lane speed
  • Backwards compatible to 6-Gbps SAS-2.1 of optical module capable systems
  • 4Tx/Rx, Full-Duplex AOCs, Maximum aggregate speed of 48-Gbps
  • Bit-Error-Rate (BER) better than 10-12
  • Link length up to 100-m via OM3 MMF
  • Round cable with small 3.0-mm outer diameter for flexible routing and easy cable management
  • Connector compliant to SFF-8644
  • Management interface compliant to SFF-8636
  • Out-of-Band (OOB) Signal Support

Specifications:

Our Mini-SAS HD AOC is followed by SFF-8644 MSA in the SAS-3.0 standard, whose reduced size of connector provides premium board space for implementing more I/O ports; approximately double of the density compared to QSFP+ ports. The single land speed is up to 12-Gbps to fulfill SAS-3 standard, also backward to fully compliant with SAS-2.1 of 6-Gbps land speed. Also, the out-of-band (OOB) low-speed hand-shaking communication is also supported. This cable can be compliant to 40GBASE-SR4 Ethernet or 40-Gbps QDR InfiniBand protocol to meet several existing standards.

Micro SATA Cables PN # SFF-1713-3M

More Information
Part # SFF-1713-3M
Bar Code (UPC) 673681049707
