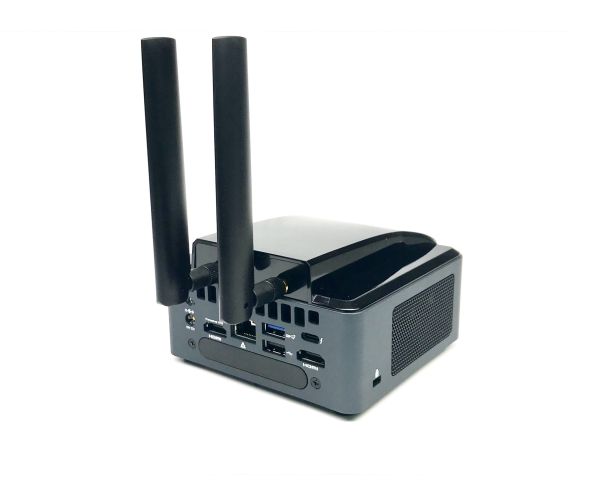

GORITE LTE Adapter LID for Intel NUC
GORITE LTE Adapter LID for Intel 8th Gen NUCs and later.
The LTE Adapter LID allows the Intel NUC user to use our NGFF (M.2) B Key card to USB adapter to convert a wireless M.2 Card to be used with one of the internal USB ports on the Intel NUC.
The unit works with a NGFF(M.2) WWAN/LTE/4G Module to USB connection with SIM card Slot.
It supports a M.2 module card (Socket 2 SSIC-base WWAN) such as GSM, HSPA (3.5G), GPS, LTE cards via USB.
Cable connections are MHF4 to RP-SMA Female Cable
Supports NUC Models :
8th GEN Intel NUCs and later.
Supports USB interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G WiMAX, LTE, Mini Cards such as, HUAWEI MU736/ME936/ME906V, Sierra Wireless Airprime EM7305
Easy installation & no driver required, but make sure you have installed the software drivers for your M.2 card.
Support 30*42 type NGFF(M.2) B Key card.
Support SIM 6pin/8pin card connector.
No additional power required
Supports Plug & Play and Hot-Swapping
Supports any OS, like Windows, WinCE, Linux
Customers need to provide their own Mini Card Module and SIM Card. These are not include with the LID unit. Module or SIM card shown in any pictures are for display purposes only.
GORITE PN # GR-LTE-1688
|Bar Code (UPC)||646791004508|
|Specifications||Compatible with NUC Models: Latest generation (8th+) Intel NUCs. Features: supports M.2 Cards (Socket 2 SSIC-base WWAN) via a USB interface, such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, Mini Cards such as those from HUAWEI MU736/ME936/ME906V and the Sierra Wireless Airprime EM7305. Simple setup with no additional drivers needed; however, you should always have the latest software drivers for your M.2 card installed. Support NGFF(M.2) B Key card with a 30*42 B Key. Accept a SIM card connector of either 6 or 8 pins. There is no need for additional power. supports Hot-Swapping and allows Plug-and-Play functionality Supports for the use of any operating system, including Windows, WinCE, and Linux. Both the Mini Card Module and the SIM Card must be supplied by the customer. The LID system does not come with these. Pictures of a module or SIM card are for illustration purposes only. GORITE PN#GR-LTE-1688|
