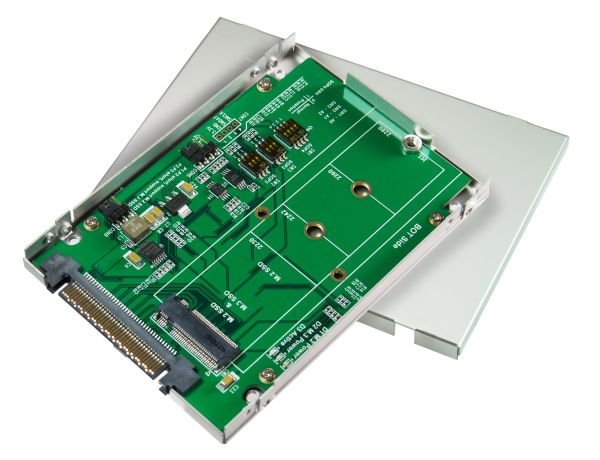

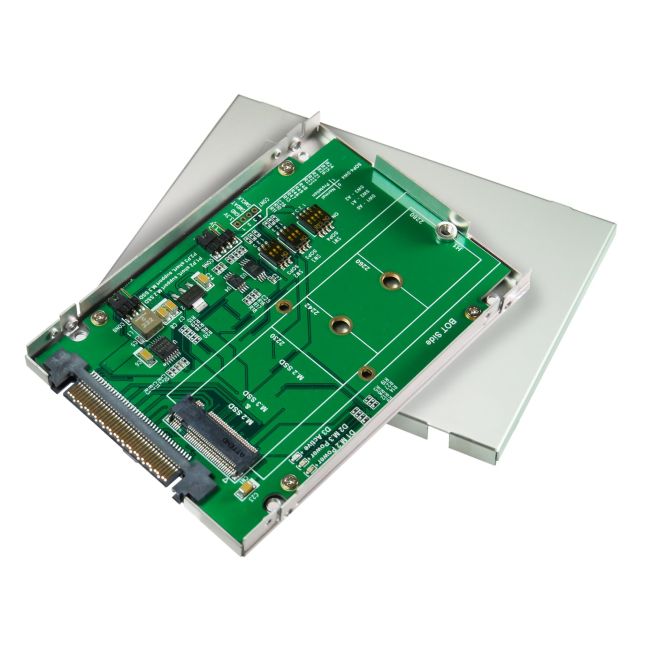

GEN Z (SFF-8639) to M.2 NVMe SSD Adapter with 2.5 Inch Enclosure

GEN Z (SFF-8639) to M.2 NVMe SSD Adapter with 2.5 Inch Enclosure

Features :

• M.2 NVMe to Gen-Z(SFF-8639) convert

• Build in SFF-8639 connector, pin-out defined by SFF-TA-1001 Rev1.1

• PWM synchronous buck converter Power for M.2 SSD

• • 4A maximum output current
  • Short circuit protection

  • In-rush current suppression

  • Thermal shutdown protection

  • ESD HBM (Human Body Mode)/2KV


Specifications :

• Supports CLKREQ#, WAKE#

• Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA Level Shift

• Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA isolated

• Built in SMBUS EEPROM 64KB

• D1 Green LED on indicates M.2 NVMe SSD power ready

• D3 RED LED Blinking indicates M.2 active status

• Compliant with NVM Express 1.2

• Support PCI Express Base Specification Rev 3.1

• Support SSD_Form_Factor_Version1_a

• Compliant with PCI Express M.2 Specification Version 1.0

• Compliant with PCIe_SFF-8639_R3.0_V1.0

• Compliant with SFF-TA-1001 Rev1.1


Supports M.2(NGFF) form factor :

• Type 2242-D2-B-M: 42mm(L) x 22mm(W)

• Type 2260-D2-B-M: 60mm(L) x 22mm(W)

• Type 2280-D2-B-M: 80mm(L) x 22mm(W)


Micro SATA Cables PN # GENZU3-1681
