EDSFF 1C to PCIe GEN 5 M.2 SSD Adapter GEN 5

Part #1C-2450-M2
$118.75

EDSFF 1C to PCIe 5.0 M.2 NVMe SSD Adapter Gen 5 | Micro SATA Cable PN # 1C-2450-M2

More Information

Part # 1C-2450-M2
Bar Code (UPC) 611851928438
Specifications

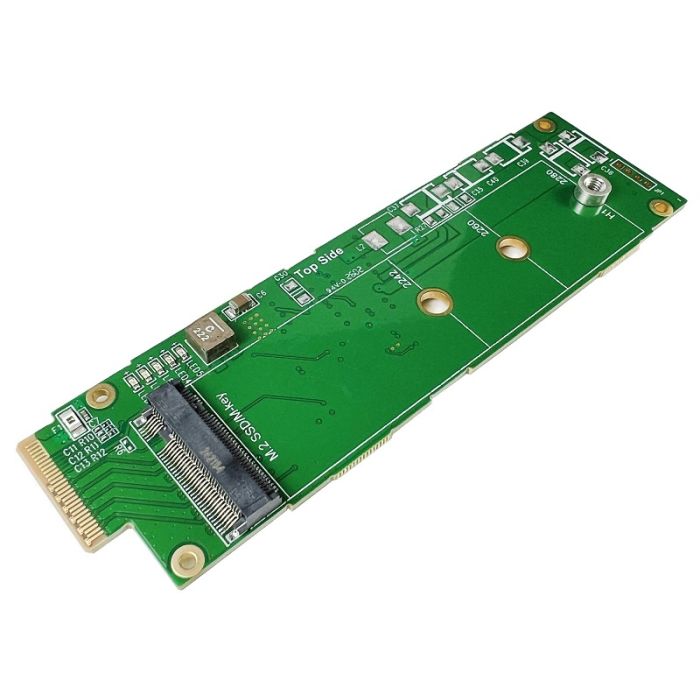

‌EDSFF GEN Z 1C to M.2 SSD Adapter Gen 5.0

‌Features :

 M.2 NVMe to EDSFF(GEN-Z) 1C convert

  • Built-in M.2 M-key connector
  • 12V Input power rail built-in 5A Fuse
  • PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
        • 5.5A maximum output current
        • Output Discharge Control
        • The output overcurrent protection(OCP)
        • Uundervoltage lock out protection(UVLO) monitor
        • Over/Under Voltage Protection
        • Thermal shutdown protection
        • ESD HBM (Human Body Mode)/500V
  • Supports M.2 CLKREQ# tied to EDSFF 1C A11 pin
  • Supports M.2 /1.8V to EDSFF/3.3V SMBus Level Shift, isolated and repeater
  • LED1 Green LED on indicates 3.3V power ready
  • LED2 Green LED on indicates 1.8V power ready
  • LED3 Red LED on to off indicates PCIe PERST# signals implementation
  • LED4 Red LED on to off indicates PCIe CLKREQ# signals implementation
  • LED5 Red LED flash indicates M.2 NVMe SSD Active
Specifications :

  • Compliant with NVM Express 2.0
  • Support PCI Express Base Specification Rev 5.0
  • Support SSD_Form_Factor_Version1_a
  • Compliant with PCI_Express_M.2_Spec_Rev5.1_05012024_NCB
  • Compliant with SFF-TA-1002Rev1.5.2 Form Factor
  • Compliant with SFF-TA-1009Rev4.1a Pin and Signal Specification
Support the following M.2 SSD Sizes :
  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
Micro SATA Cables PN # 1C-2450-M2
