AWM 20624 RIBBON FLEX CABLE 0.50 mm Pitch 18 Pin ZIF 50 mm

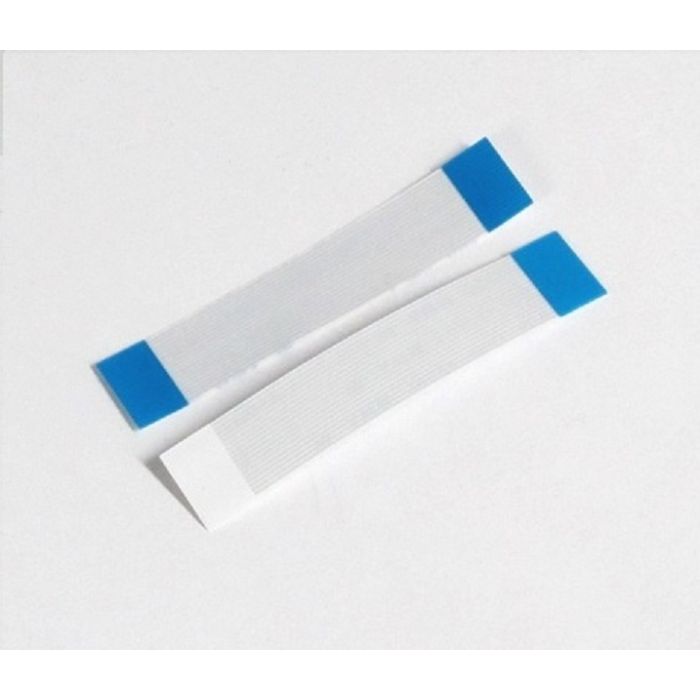

Product Name: AWM 20624 Ribbon Flex Cable - 0.50 mm Pitch, 18-Pin ZIF, 50 mm - Set of 2

Overview: The AWM 20624 Ribbon Flex Cable is a high-quality, flexible cable designed for precise and reliable internal connections in various electronic applications. Featuring an 18-pin Zero Insertion Force (ZIF) connector with a 0.50 mm pitch, this cable provides a compact and efficient solution for interfacing components within tight spaces. Each cable in this set measures 50 mm in length, making it ideal for applications requiring short, flexible connections. This product is offered as a set of two cables for convenience in multi-device or multi-connection setups.

Technical Specifications:

• Type: Ribbon Flex Cable

• Standard: AWM 20624

• Pitch: 0.50 mm

• Pins: 18-Pin ZIF (Zero Insertion Force)

• Length: 50 mm (5 cm)

• Quantity: Set of 2 cables

• Design:

  • Insulation: High-quality insulation material provides protection and ensures reliable electrical performance.
  • Conductors: Precision-engineered conductors maintain signal integrity and minimize interference.
  • Shielding: Effective shielding reduces electromagnetic interference (EMI) and maintains stable data transmission.

• Connector:

  • Type: 18-Pin ZIF (Zero Insertion Force)
  • Pitch: 0.50 mm
  • Function: Facilitates easy and secure connections to ZIF sockets, which use a lever mechanism to reduce insertion force and prevent damage to the cable and connectors.

• Performance:

  • Data Transfer: Supports stable data transfer rates suitable for internal connections in various electronic devices.
  • Compatibility: Designed to be compatible with devices and motherboards featuring 18-pin ZIF sockets with a 0.50 mm pitch.

• Applications:

  • Internal Connections: Ideal for connecting internal components in compact electronic devices such as laptops, tablets, and custom electronics.
  • Custom Projects: Useful for DIY projects and custom electronics where precise and flexible connections are required.
  • Industrial Equipment: Suitable for industrial machinery and equipment requiring reliable and flexible internal connections.

Key Features:

• 0.50 mm Pitch: Provides a compact and precise connection, suitable for high-density applications.
• 18-Pin ZIF Connector: Ensures secure and reliable connections with zero insertion force, reducing the risk of damage to the cable and connectors.
• 50 mm Length: Offers a short and flexible connection solution, ideal for tight or constrained spaces.
• Set of 2 Cables: Convenient set for use in applications requiring multiple connections or for spares in multi-device setups.

Usage Notes:

• Ensure proper alignment when inserting the cable into the ZIF connector to avoid connection issues or damage.
• Use the ZIF lever mechanism to secure the cable in place without applying excessive force.
• Handle the cable carefully to avoid bending or damaging the ribbon or connectors.

Additional Information:

• Safety Precautions: Always power off and unplug your equipment before connecting or disconnecting the cable to avoid electrical hazards.
• Compatibility Check: Verify that the cable’s pitch, pin count, and connector type match the specifications of your device and connector to ensure proper functionality and safety.

‌
