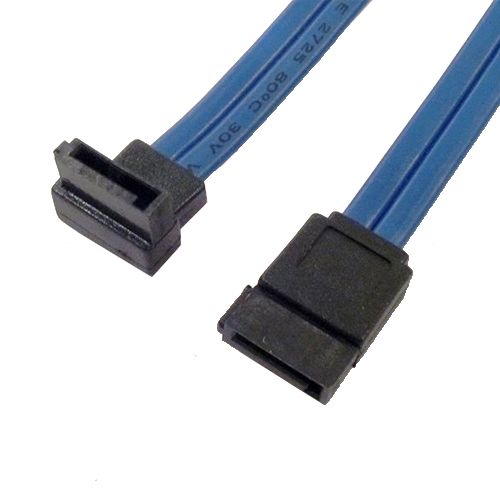

7 Pin SATA 90 Degree Left Angle to Straight 7 Pin Cable 20 Inches

‌Overview:

The 7 Pin SATA 90 Degree Left Angle to Straight 7 Pin Cable is designed to connect SATA devices, such as hard drives, solid-state drives (SSDs), or optical drives to a motherboard or SATA controller. Featuring a 90-degree left-angle connector and a straight connector, this cable is ideal for installations where space constraints or tight corners make a standard cable difficult to use. The 20-inch length provides ample reach for connecting devices within a computer case or enclosure.

Technical Specifications:

Type: SATA Data Cable with 90 Degree Left Angle to Straight Connector

Length: 20 inches (50 cm)

Connectors:

Connector A: SATA 7 Pin Male 90 Degree Left Angle

Connector B: SATA 7 Pin Male Straight

Cable Gauge: 28 AWG (data)

Shielding: Foil shielding to minimize electromagnetic interference (EMI) and ensure signal integrity

Data Transfer Rate: Supports SATA III speeds up to 6 Gbps

Design:

Material: High-quality PVC insulation for flexibility and durability

Connector Build:

90 Degree Left Angle Connector: Allows for a right-angled connection to fit into tight or constrained spaces, optimizing airflow and space usage

Straight Connector: Standard straight connector for easy connection to SATA devices and ports

Cable Construction: Flexible cable design with reinforced shielding to prevent signal interference and degradation

Insulation: Shielded to protect against external electromagnetic interference and ensure stable data transmission

Performance:

Data Transfer Rate: Supports high-speed data transfer up to 6 Gbps, adhering to the SATA III standard for efficient communication between devices

Compatibility: Fully compatible with SATA I, SATA II, and SATA III interfaces, ensuring broad compatibility with various devices and motherboards

Signal Integrity: Designed to maintain high signal integrity and minimize data corruption or loss during transfer

Applications:

Internal Connections: Ideal for connecting internal SATA drives (HDDs, SSDs) to the motherboard or SATA controller within a computer case, especially where space is limited

Custom Builds: Suitable for use in custom PC builds where precise cable routing and space management are required

Upgrades and Repairs: Useful for replacing or upgrading existing SATA cables, or for making connections in tighter areas of a computer case

Key Features:

90 Degree Left Angle Connector: Facilitates installation in tight or constrained spaces, improving cable management and airflow within the computer case

High-Speed Performance: Supports data transfer rates up to 6 Gbps for efficient and fast data communication

Durable Construction: Built with high-quality materials and shielding to ensure long-lasting performance and reliable connectivity

Flexible Length: 20-inch length provides sufficient reach for connecting devices while maintaining a clean and organized setup

Versatile Compatibility: Compatible with SATA I, II, and III standards, making it suitable for a wide range of devices and systems

Usage Notes:

Connection: Ensure that both SATA connectors are securely attached to the SATA ports on the motherboard and the SATA device

Handling: Handle the cable and connectors with care to avoid bending or damaging the connectors and internal wiring

Compatibility Check: Verify that your devices and motherboard support SATA III to fully utilize the cable’s data transfer capabilities

Additional Information:

Safety Precautions: Avoid excessive bending or twisting of the cable to prevent damage. Ensure all connections are securely made to avoid potential issues with data transmission

Connection Tips: Properly align and insert the connectors to ensure stable operation and prevent disconnections or signal loss
