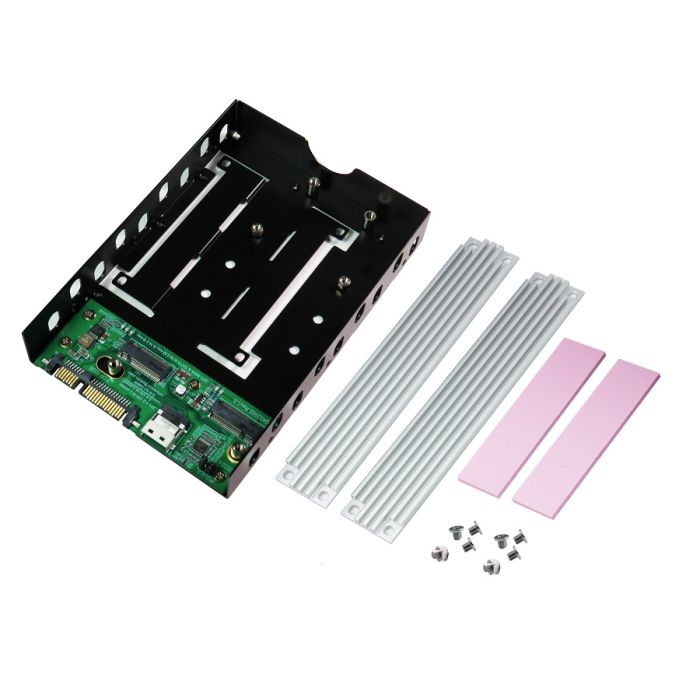

3.5 Inch Slimline SAS & SATA to M.2/M.3 NVMe SSD Caddy

Slimline SAS to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray. Features

• Built-in SFF-8654(Slimline SAS) Female connector
• Built-in M.2 M-key Female connector, pin-out defined by PCIe
• Built-in M.2 B-key Female connector
• D1 Green LED on indicates M.2 NVMe SSD power ready
• D2 Green LED on indicates M.3 NVMe SSD power ready
• D3 RED LED Blinking indicates M.2 or M.3 NVMe active status
• D4 Green LED on indicates M.2 SATA SSD power ready
• D5 RED LED Blinking indicates M.2 SATA SSD active status

Specifications

• Compliant with NVM Express 1.0a
• Support PCI Express Base Specification Rev 3.0
• Compliant with PCI Express M.2 Specification Version 1.0
• Compliant with Samsung M.3 Datasheet_v0.4
• Compliant with SFF-8301 Specification for 3.5" Form Factor Drive Dimensions
• Support SSD_Form_Factor_Version1_a
• Compliant with SFF-9402 Specification Rev 1.0
• Compliant with SFF-8654 Rev1.1.1
• Compliant with SerialATA_Revision_3_2_Gold

Application

• SFF-8654 to SFF-8654 Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe RefClk p,n & Rerst
• SFF-8612 to SFF-8654 Cable for SFF-8612 Oculink Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
• SFF-8643 to SFF-8654 Cable for SFF-8643 MINI SAS HD by Intel defined PCIe RefClk p,n & Rerst#

Supports the following form factor M.2 SSD

• Type 2242-D2-B-M: 42mm(L) x 22mm(W)
•  Type 2260-D2-B-M: 60mm(L) x 22mm(W)
• Type 2280-D2-B-M: 80mm(L) x 22mm(W)
• Type 22110-D2-B-M: 110mm(L) x 22mm(W)

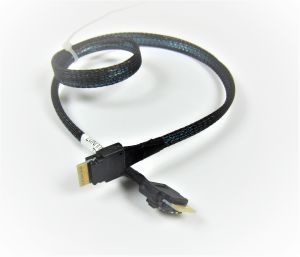

Micro SATA Cables PN # SAS-1668-M
