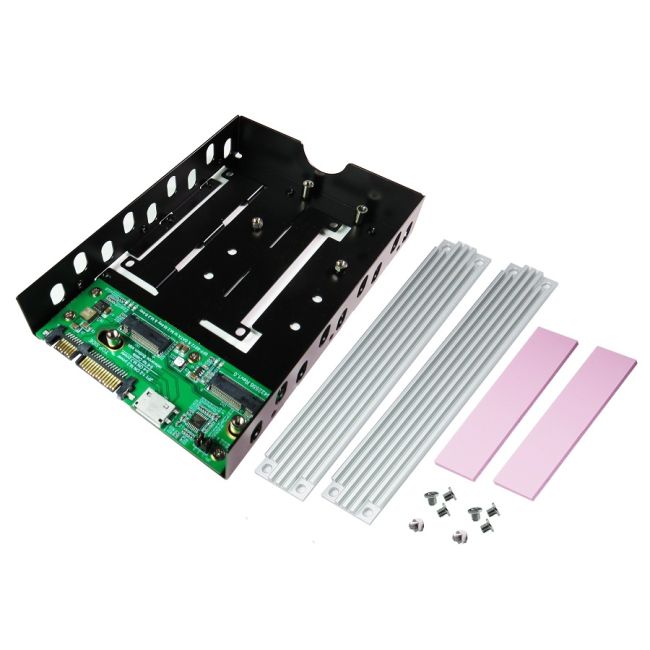

3.5 Inch Oculink & SATA to M.2/M.3 NVMe SSD Caddy

$54.75

Oculink to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray

Availability: In stock
Only 6 left
Part #
OCU-1667-M

Oculink to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray

Features

  • Built-in SFF-8612(Oculink) Female connector
  • Built-in M.2 M-key Female connector, pin-out defined by PCIe
  • Built-in M.2 B-key Female connector
  • D1 Green LED on indicates M.2 NMMe SSD power ready
  • D2 Green LED on indicates M.3 NVMe SSD power ready
  • D3 RED LED Blinking indicates M.2 or M.3 NVMe active status
  • D4 Green LED on indicates M.2 SATA SSD active status
  • D5 RED LED Blinking indicates M.2 SATA SSD active status
  • Compliant with NVM Express 1.0a
  • Support PCI Express Base Specification Rev 3.0
  • Compliant with PCI Express M.2 Specification Version 1.0
  • Compliant with Samsung M.3 Datasheet_v0.4
  • Compliant with SFF-8301 Specification for 3.5" Form Factor Drive Dimensions
  • Support SSD_Form_Factor_Version1_a
  • Compliant with SFF-12 Specification Rev 0.3
  • Compliant with SFF-9402 Rev1.0
  • Compliant with SerialATA_Revision_3_2_Gold

Application

  • SFF-8611 to SFF-8611 Cable for SFF-8612 Oculink Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
  • SFF-8654 to SFF-8611 Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
  • SFF-8643 to SFF-8611 Cable for SFF-8643 mini SAS HD by Intel defined PCIe RefClk p,n & Rerst

Supports the following form factor M.2 SSD

  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Type 22110-D2-B-M: 110mm(L) x 22mm(W)

Micro SATA Cables PN # OCU-1667-M

More Information
Part # OCU-1667-M
Bar Code (UPC) 646791004348
Specifications

Oculink to M.2 / M.3 NVMe SSD Drive tray SATA 7+15pin to M.2 SATA interface SSD Drive tray

Features

  • Built-in SFF-8612(Oculink) Female connector
  • Built-in M.2 M-key Female connector, pin-out defined by PCIe
  • Built-in M.2 B-key Female connector
  • D1 Green LED on indicates M.2 NMMe SSD power ready
  • D2 Green LED on indicates M.3 NVMe SSD power ready
  • D3 RED LED Blinking indicates M.2 or M.3 NVMe active status
  • D4 Green LED on indicates M.2 SATA SSD active status
  • D5 RED LED Blinking indicates M.2 SATA SSD active status
  • Compliant with NVM Express 1.0a
  • Support PCI Express Base Specification Rev 3.0
  • Compliant with PCI Express M.2 Specification Version 1.0
  • Compliant with Samsung M.3 Datasheet_v0.4
  • Compliant with SFF-8301 Specification for 3.5" Form Factor Drive Dimensions
  • Support SSD_Form_Factor_Version1_a
  • Compliant with SFF-12 Specification Rev 0.3
  • Compliant with SFF-9402 Rev1.0
  • Compliant with SerialATA_Revision_3_2_Gold

Application

  • SFF-8611 to SFF-8611 Cable for SFF-8612 Oculink Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
  • SFF-8654 to SFF-8611 Cable for SFF-8654 Slimline SAS Host by SFF-9402 defined PCIe RefClk p,n & Rerst#
  • SFF-8643 to SFF-8611 Cable for SFF-8643 mini SAS HD by Intel defined PCIe RefClk p,n & Rerst

Supports the following form factor M.2 SSD

  • Type 2242-D2-B-M: 42mm(L) x 22mm(W)
  • Type 2260-D2-B-M: 60mm(L) x 22mm(W)
  • Type 2280-D2-B-M: 80mm(L) x 22mm(W)
  • Type 22110-D2-B-M: 110mm(L) x 22mm(W)

Micro SATA Cables PN # OCU-1667-M
